Brand: Panduit
|
SKU:
LCC3/0-14BWF-X

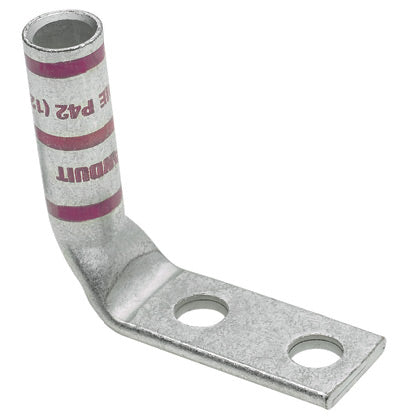

Panduit LCC3/0-14BWF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380737
Regular price
$13.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC3/0-14BWF-X | Tin-Plated Copper Compression Connectors -...
Regular price
$13.98
Unit price
Brand: Panduit
|
SKU:
LCC3/0-14BWF-X
Regular price
$13.98
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCC, 3/0 AWG Conductor, Die Code: P50, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.96 in W x 0.13 in THK Tongue, 2.42 in Overall Length, Long Barrel, 1-1/2 in L Barrel, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Orange
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCC3/0-14BWF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380737 Key Specs
| Copper Conductor Size (AWG) | 3/0 |
| Copper Conductor Size (kcmil) | 168 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.42 |
| Overall Length (mm) | 61.5 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
Panduit LCC3/0-14BWF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380737 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAWF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC3_0-14BWF-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC3/0-14BWF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380737 Environmental Information
| Panduit's RoHS Statement | Download and View |
