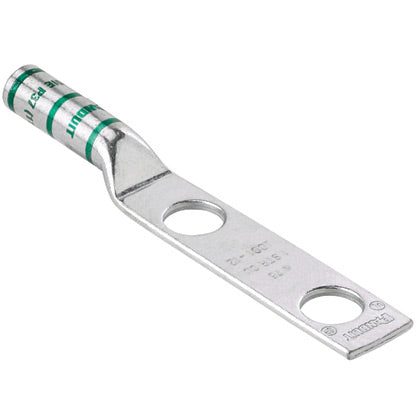

Panduit LCC350-38D-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, long barrel lug, 350 kcmil cable, 3/8" stud hole, 1" hole spacing.
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 4.81 in Overall Length, Long Barrel, 0.7 in ID x 0.88 in OD x 2.24 in L Barrel, Specifications: 1 in Stud Hole Spacing, 2-5/16 in L Wire Strip, Tin Plated, 90 deg C, 2.31 in Mounting Hole, Copper, Red
Panduit - LCC350-38D-X - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC350-38D-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC350-38D-X |
| Barrel | Long |
| Bolt Hole | 3/8 Inch |
| Gauge | 350Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Copper Code Conductor Size (kcmil) | 350 |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 4.81 |
| UPC | 07498371953 |
