Brand: Panduit
|
SKU:
PAN-LCC4/0-38

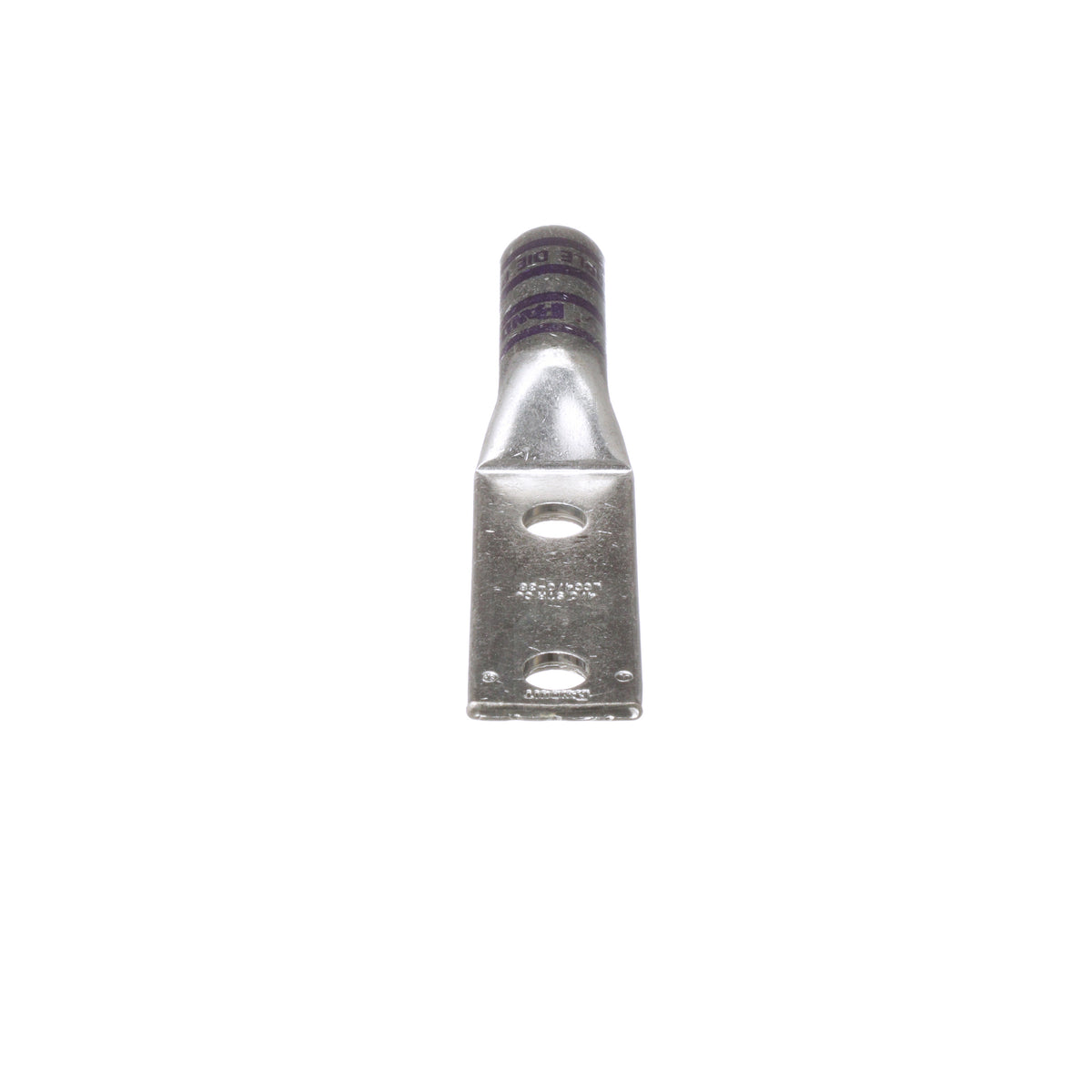

Panduit LCC4/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338286
Regular price
$15.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC4/0-38-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$15.83
Unit price
Brand: Panduit
|
SKU:
PAN-LCC4/0-38
Regular price
$15.83
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 4.74 in Overall Length, Long Without Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, 1-5/8 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC4/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338286 Key Specs
| Copper Conductor Size (AWG) | 4/0 |
| Copper Conductor Size (kcmil) | 212 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.56 |
| Barrel Length (mm) | 39.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 4.74 |
| Overall Length (mm) | 120.4 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
Panduit LCC4/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338286 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC4_0-38-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC4/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338286 Environmental Information
| Panduit's RoHS Statement | Download and View |
