Brand: Panduit
|
SKU:
LCC4-14AW-L

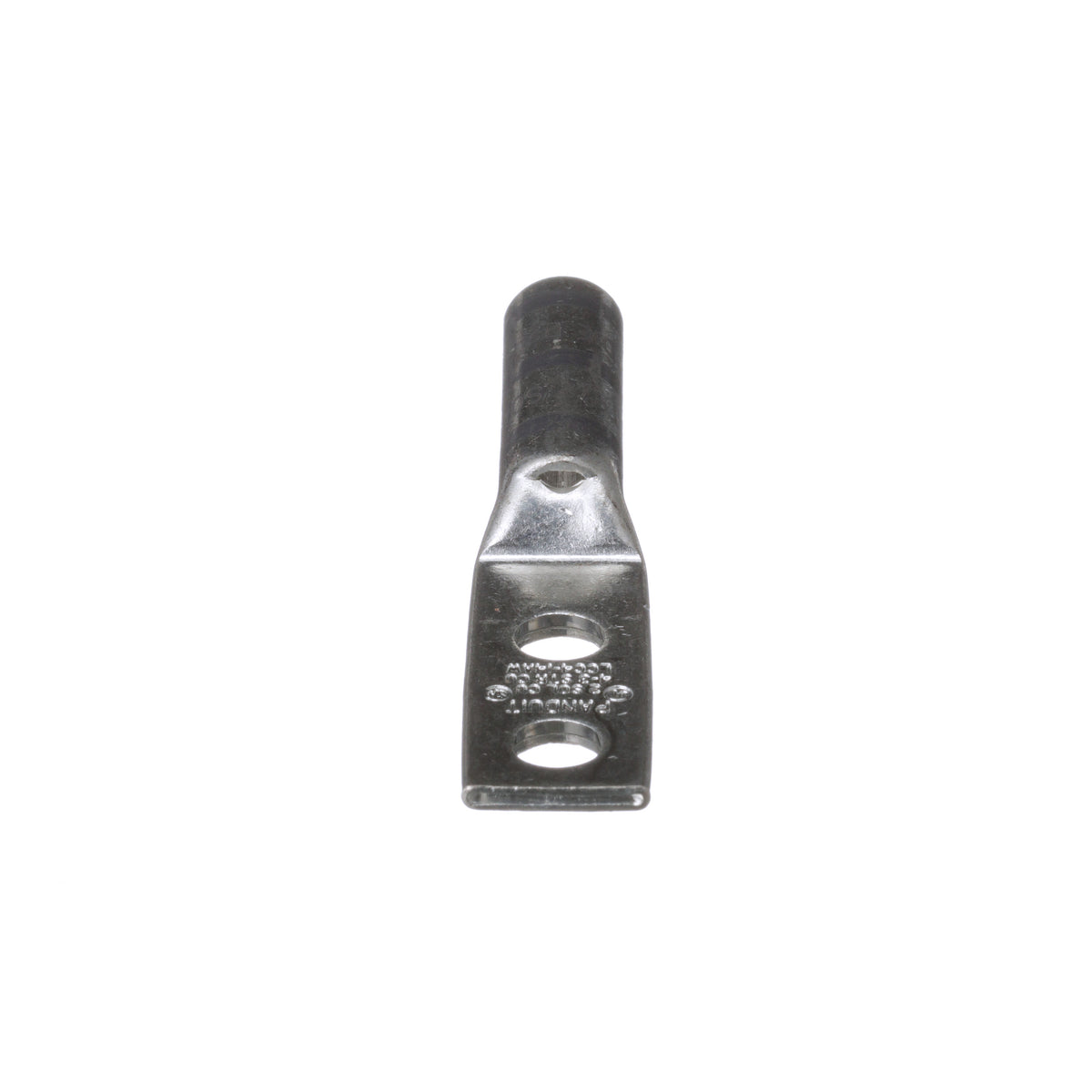

Panduit LCC4-14AW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379783
Regular price
$8.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC4-14AW-L | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$8.99
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-W, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2-1/2 in Overall Length, Long With Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, 1-1/8 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC4-14AW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379783 Key Specs
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
| Color Code | Gray |
| Panduit Die Index Number | 29 |
Panduit LCC4-14AW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379783 Data Sheets
| Part Drawings | Part Drawing - PDF - LCC4-14AW-CUST | Download and View |
| Catalog Cut Sheets | LCC-W | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC4-14AW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379783 Environmental Information
| Panduit's RoHS Statement | Download and View |
