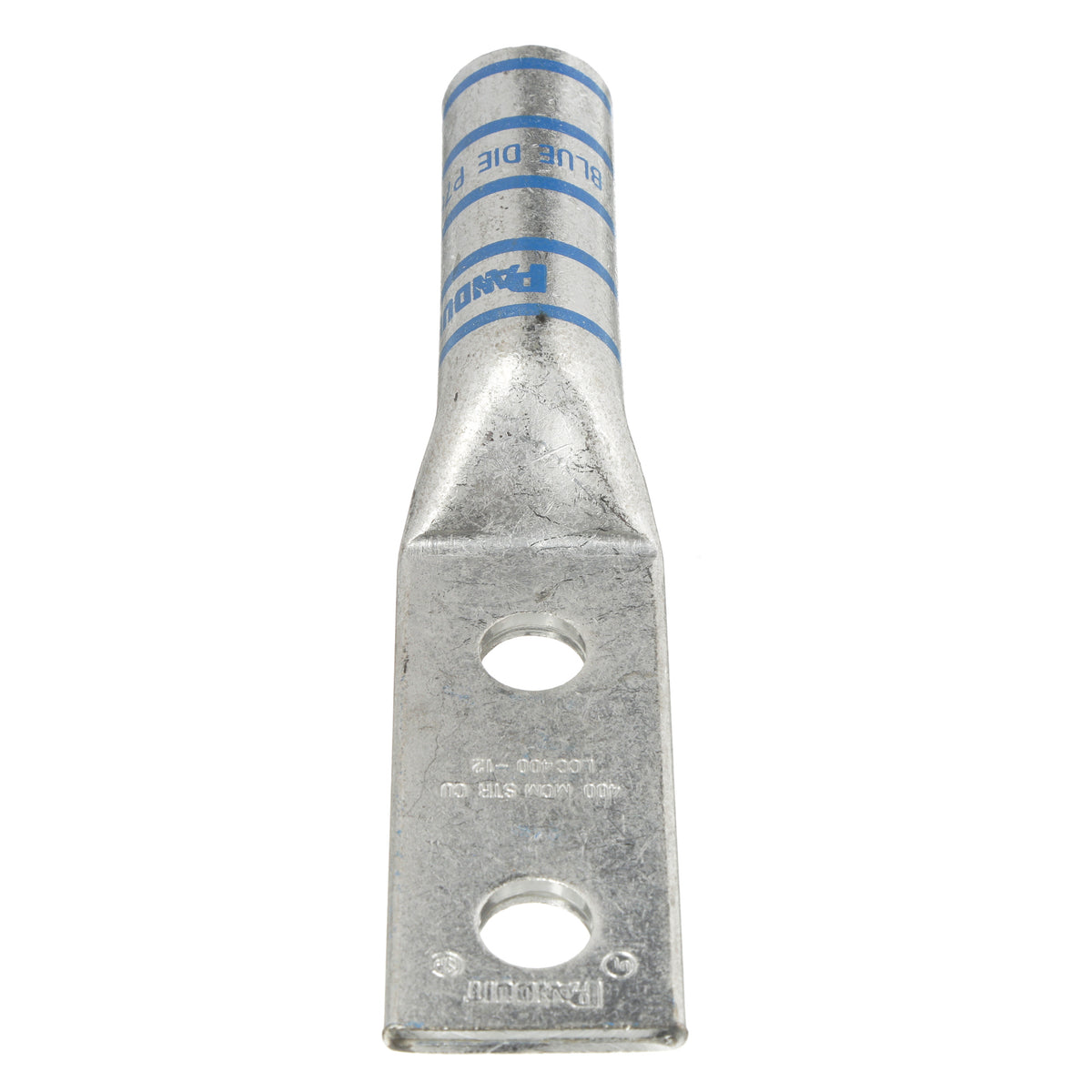

Panduit LCC400-12-6 | Pan-Lug Comp. Lug, 400, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC400-12-6 | Pan-Lug Comp. Lug, 400, Tin Plt Copper, Strt,...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, long barrel lug, 400 kcmil cable, 1/2" stud hole, 1.75" hole spacing.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 400 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 6.1 in Overall Length, Long without Inspection Window Barrel, 0.76 in ID x 0.95 in OD x 2.29 in L Barrel, 2-3/8 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 2-3/8 in Mounting Hole, Copper, Blue
Panduit - LCC400-12-6 - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC400-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC400-12-6 |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 400Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 400 |
| Barrel Length (In.) | 2.3 |
| Barrel Length (mm) | 58.4 |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 6.1 |
| UPC | 07498390260 |
