Brand: Panduit
|
SKU:
LCC6-10BWF-L

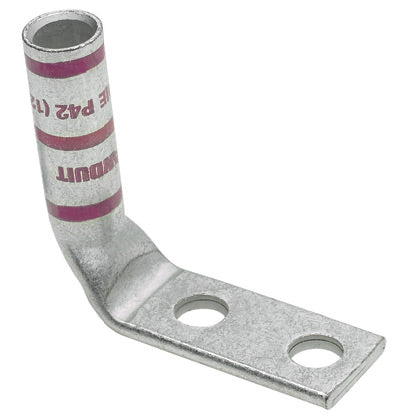

Panduit LCC6-10BWF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380579
Regular price
$9.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC6-10BWF-L | Tin-Plated Copper Compression Connectors - L...
Regular price
$9.74
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, 90 deg Tongue, 0.46 in W x 0.08 in THK Tongue, 1.69 in Overall Length, Long With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 1-1/8 in L Wire Strip, 3/4 in Hole Spacing, 90 deg C, 1.13 in Mounting Hole, Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
Panduit LCC6-10BWF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380579 Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.46 |
| Tongue Width (mm) | 11.7 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.69 |
| Overall Length (mm) | 42.9 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
Panduit LCC6-10BWF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380579 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAWF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC6-10BWF-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC6-10BWF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380579 Environmental Information
| Panduit's RoHS Statement | Download and View |
