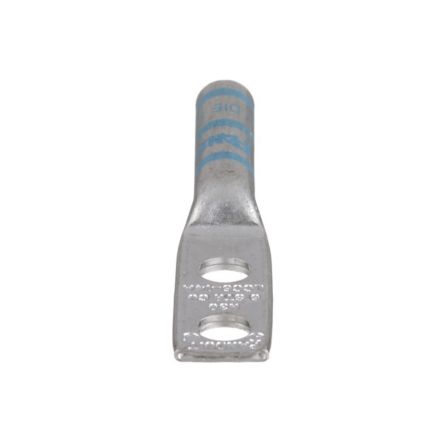

Panduit LCC6-14A-L | Pan-Lug LCC6-14A-L Comp. Lug, 6, Long, Tin Plt...
Description
Description

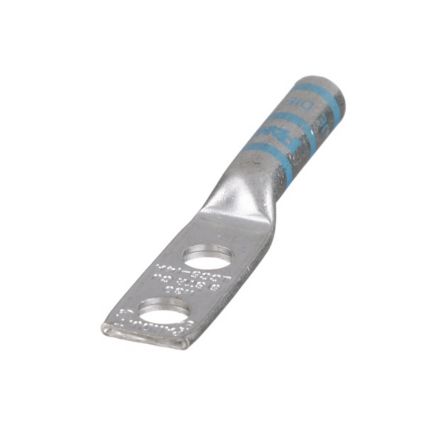

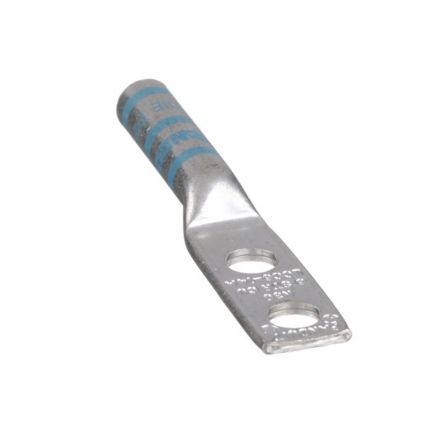

The LCC6-14A-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Panduit LCC6-14A-L - LUG - 2H LUG LONG BRL
Specifications
Specifications
Panduit - LCC6-14A-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCC6-14A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC6-14A-L |
| Item Description | Pan-Lug LCC6-14A-L Comp. Lug, 6, Long, Tin Plt Cu, Strt, Two 1/4" Stud, PK50 |
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel without Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.56 |
| Overall Length (mm) | 65.024 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| T & B Die Index Number | 24 |
| Wire Strip Length (In.) | 1-1/8 |
| Wire Strip Length (mm) | 28.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,NEBS level 3. |
Panduit - LCC6-14A-L - Package Information
| UPC | 07498338256 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCC6-14A-L - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
| Video 3 | Click to View |
