Brand: Panduit
|
SKU:
LCC6-38BDW-L

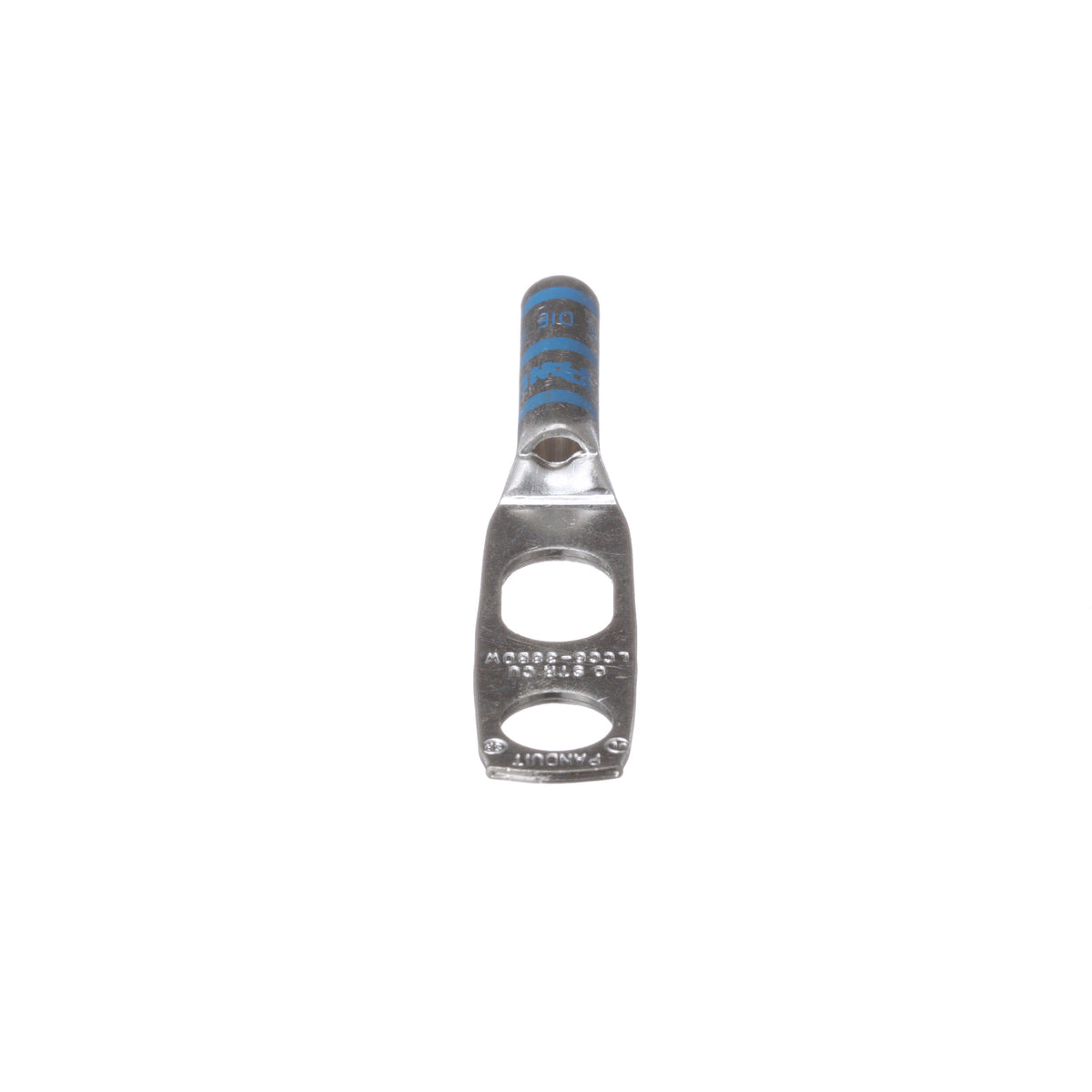

Panduit LCC6-38BDW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498334510
Regular price
$8.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC6-38BDW-L | Tin-Plated Copper Compression Connectors - L...
Regular price
$8.90
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-W, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.06 in THK Tongue, 3.08 in Overall Length, Long With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 1-1/8 in L Wire Strip, 3/4 to 1 in Stud Hole Spacing, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC6-38BDW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498334510 Key Specs
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel with Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Angle | Straight |
Panduit LCC6-38BDW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498334510 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit LCC6-38BDW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498334510 Environmental Information
| Panduit's RoHS Statement | Download and View |
