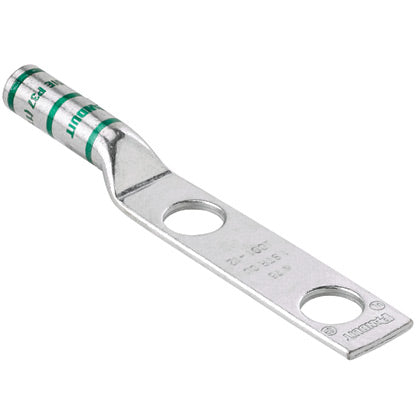

Panduit LCC600-12-6 | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC600-12-6 | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two ...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, long barrel lug
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 6.63 in Overall Length, Long Barrel, 0.92 in ID x 1.19 in OD x 2.69 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-3/4 in L Wire Strip, Tin Plated, 90 deg C, 2-3/4 in Mounting Hole, Copper, Green
Panduit - LCC600-12-6 - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC600-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC600-12-6 |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 600Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 600 |
| Barrel Length (In.) | 2.69 |
| Barrel Length (mm) | 68.3 |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 6.63 |
| UPC | 07498390276 |
