Brand: Panduit
|
SKU:
LCC600-38DW-6

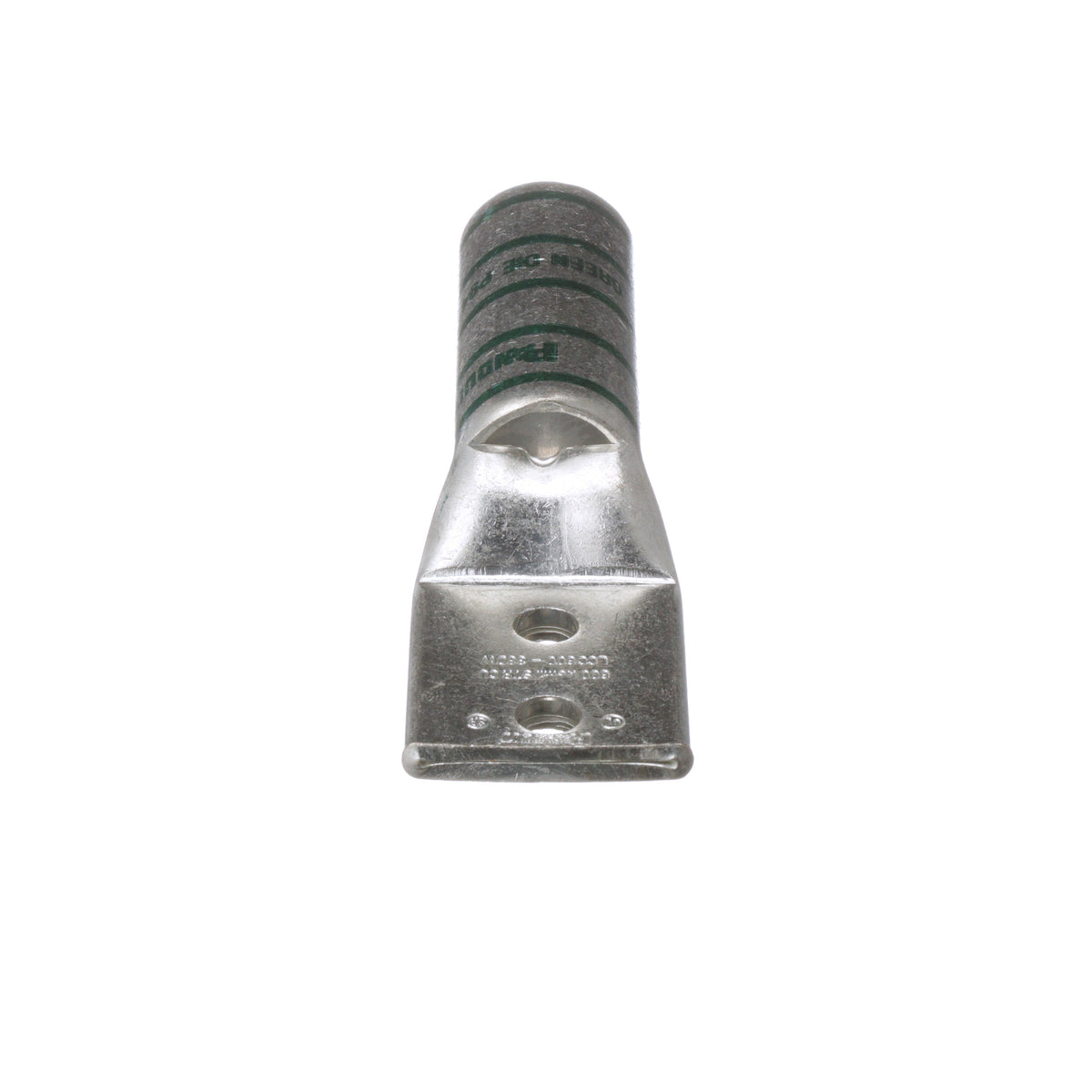

Panduit LCC600-38DW-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379856
Regular price
$37.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC600-38DW-6 | Tin-Plated Copper Compression Connectors - ...
Regular price
$37.82
Unit price
Brand: Panduit
|
SKU:
LCC600-38DW-6
Regular price
$37.82
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-W, Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kV, 3/8 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 5.18 in Overall Length, Long With Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 2.69 in L Barrel, 2-3/4 in L Wire Strip, 1 in Stud Hole Spacing, 90 deg C, 2-3/4 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC600-38DW-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379856 Key Specs
| Copper Conductor Size (kcmil) | 600 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.69 |
| Barrel Length (mm) | 68.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 5.18 |
| Overall Length (mm) | 131.6 |
| Color Code | Green |
| Panduit Die Index Number | P94 |
| Burndy Die Index Number | 22 |
Panduit LCC600-38DW-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379856 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Part Drawings | Part Drawing - PDF - LCC600-38DW-6 | Download and View |
| Catalog Cut Sheets | LCC-W | Download and View |
Panduit LCC600-38DW-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379856 Environmental Information
| Panduit's RoHS Statement | Download and View |
