Brand: Panduit
|
SKU:
LCC8-10ABW-L
Panduit LCC8-10ABW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498336148
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC8-10ABW-L | Tin-Plated Copper Compression Connectors - L...
Regular price
$7.59
Unit price
Description
Description

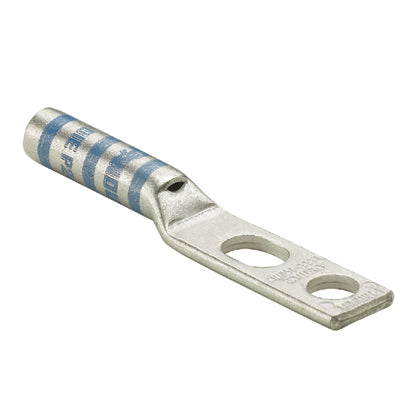

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, #10 Stud, Slotted Straight Tongue, 0.41 in W x 0.08 in THK Tongue, 2.14 in Overall Length, Long With Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.7 in L Barrel, 3/4 in L Wire Strip, 0.63 to 0.75 in Hole Spacing, 90 deg C, 3/4 in Mounting Hole, Copper, Red
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
Panduit LCC8-10ABW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498336148 Key Specs
| Copper Conductor Size (AWG) | #8 |
| Copper Conductor Size (kcmil) | 17 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.7 |
| Barrel Length (mm) | 17.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.41 |
| Tongue Width (mm) | 10.4 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.14 |
| Overall Length (mm) | 54.4 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
Panduit LCC8-10ABW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498336148 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Part Drawings | Part Drawing - PDF - LCC8-10ABW-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC8-10ABW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498336148 Environmental Information
| Panduit's RoHS Statement | Download and View |
