Brand: Panduit
|
SKU:
1019227

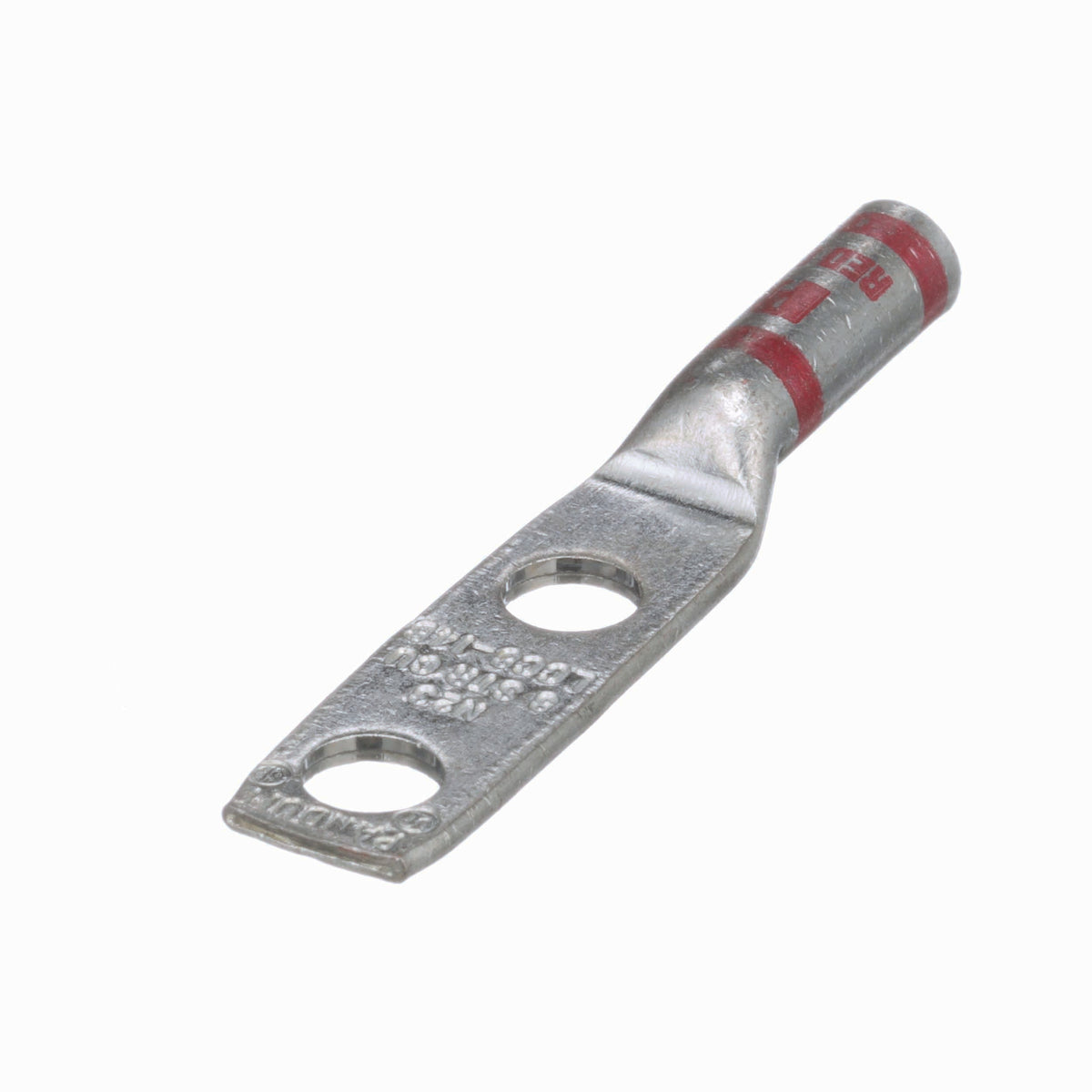

Panduit LCC8-14B-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338263
Regular price
$8.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC8-14B-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$8.59
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 2.28 in Overall Length, Long Without Inspection Window Barrel, 0.7 in L Barrel, 3/4 in L Wire Strip, 3/4 in Stud Hole Spacing, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC8-14B-L Key Specs
| Copper Conductor Size (AWG) | #8 |
| Copper Conductor Size (kcmil) | 17 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 0.7 |
| Barrel Length (mm) | 17.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 2.28 |
| Overall Length (mm) | 57.9 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Burndy Die Index Number | 49 |
| Wire Strip Length (In.) | 42,828 |
| Wire Strip Length (mm) | 19.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,NEBS level 3. |
Panduit LCC8-14B-L Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
