Panduit LCCF1/0-38D-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$11.32
Unit price
Brand: Panduit
|
SKU:
963286
Regular price
$11.32
Unit price
Description
Description

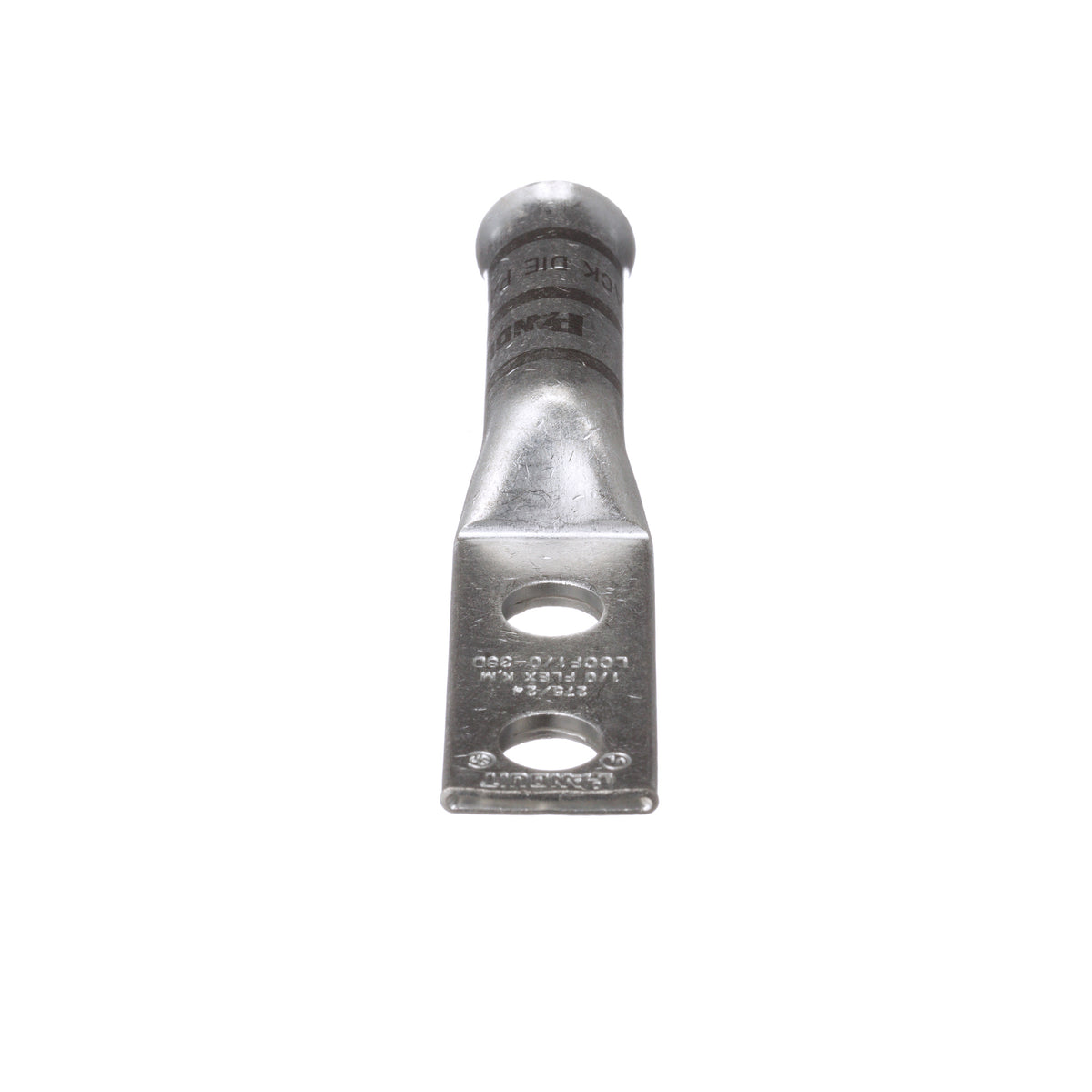

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCF, Copper Conductor, 1/0 AWG Class K, M and DLO Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Standard Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 3.82 in Overall Length, Flared/Long without Inspection Window Barrel, 0.45 in ID x 0.67 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, 1 in Stud Hole Spacing, 90 deg C, 1-9/16 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Can be used with flex conductor class K, M and diesel locomotive
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For Use with flexible and extra-flexible copper conductors
Panduit LCCF1/0-38D-X Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 3.82 |
| Overall Length (mm) | 97 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 39.7 |
