Panduit LCCF2/0-14B-X | Pan-Lug Comp. Lug, 2/0, Flare, Tin Plt Cu, ...
Description
Description

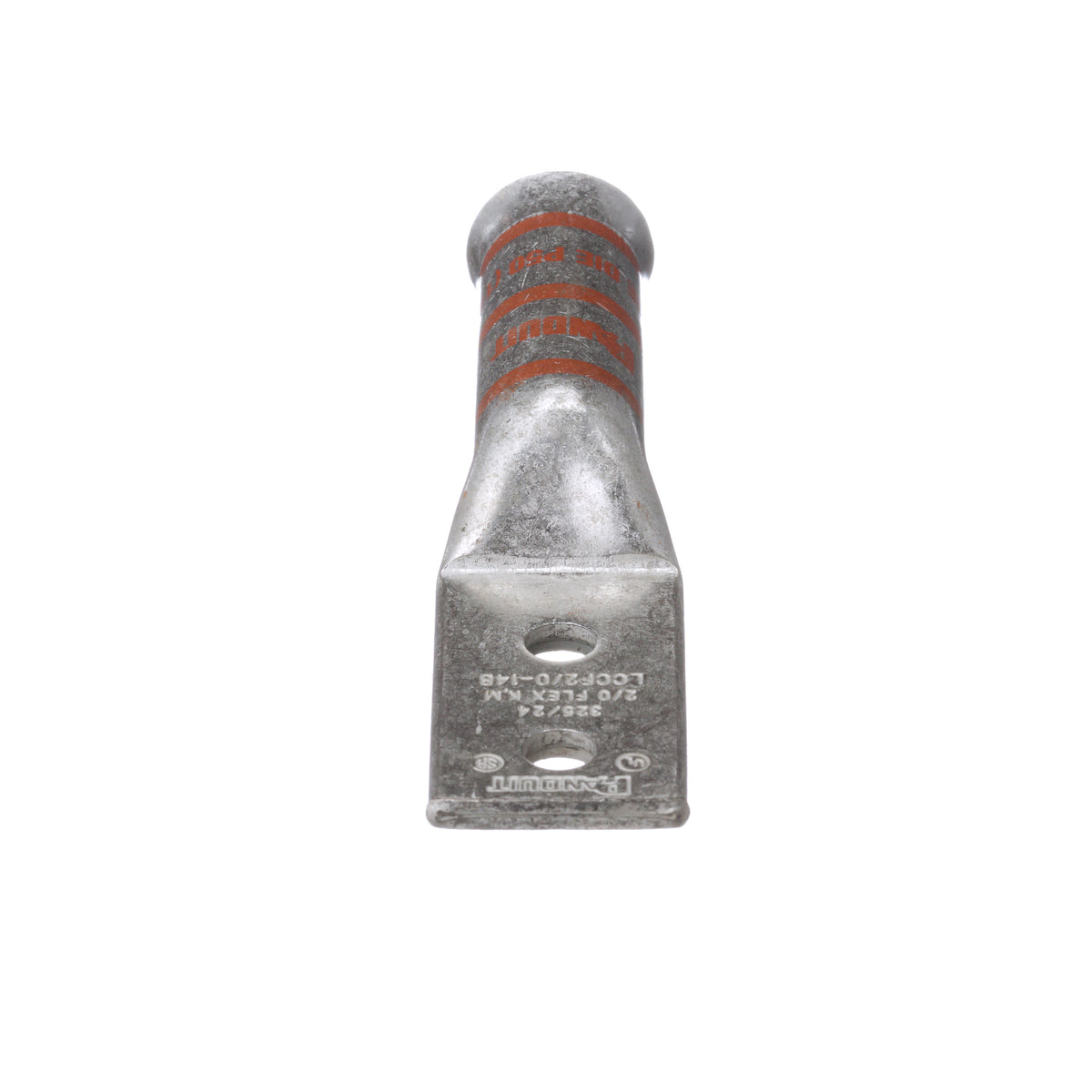

Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, long flared barrel, 2/0 AWG wire, 1/4 stud hole, 3/4 hole spacing.
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCF, 2/0 AWG Conductor, Die Code: P50, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.56 in Overall Length, Long Barrel, 1-1/2 in L Barrel, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Orange
Panduit - LCCF2/0-14B-X - Features
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Specifications
Specifications
Panduit - LCCF2/0-14B-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCF2/0-14B-X |
| Barrel | Long |
| Bolt Hole | 3/4 Inch |
| Gauge | 2/0 Awg |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Class K Copper Flex Conductor Size (AWG) | 2/0 |
| Class M Copper Flex Conductor Size (AWG) | 2/0 |
| DLO Copper Flex Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| UPC | 07498375311 |
