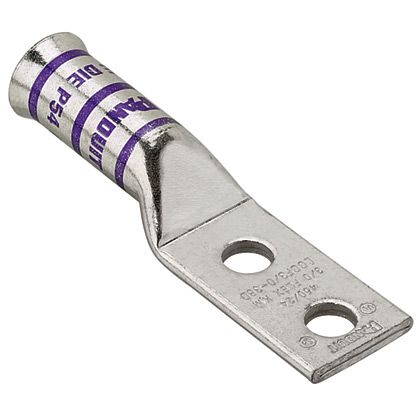

Panduit LCCF250-38D-X | Pan-Lug LCCF250-38D-X Compression Connectors - Lugs
Two-hole, long flared barrel, 250 kcmil cable, 3/8 bolt holes, 1 hole spacing.
Specifications
Specifications
Panduit - LCCF250-38D-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCCF250-38D-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCF250-38D-X |
| Item Description | Pan-Lug LCCF250-38D-X Compression Connectors - Lugs |
| Product Type | Compression Lug |
| Base Material | Copper |
| Class K Copper Flex Conductor Size (kcmil) | 250 |
| Class M Copper Flex Conductor Size (kcmil) | 250 |
| DLO Copper Flex Conductor Size (kcmil) | 262 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 4.81 |
| Overall Length (mm) | 122.2 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | White |
| Panduit Die Index Number | P66 |
| Wire Strip Length (In.) | 2.31 |
| Wire Strip Length (mm) | 58.7 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry. |
Brand Name - LCCF250-38D-X - Package Information
| UPC | 07498371969 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0528 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
