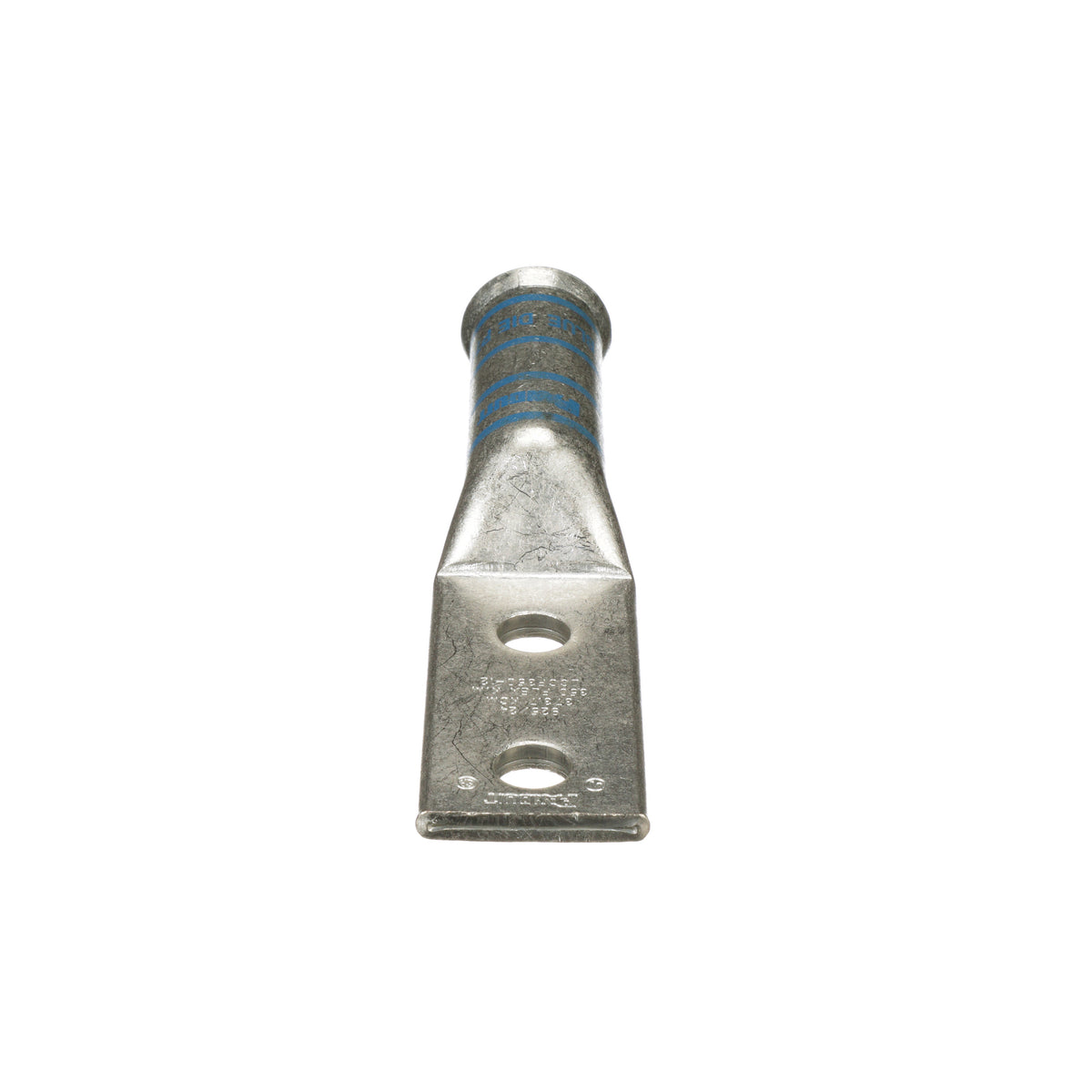

Panduit LCCF350-12-6 | Pan-Lug Comp. Lug, 350, Flare, Tin Plt Coppe...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
350 kcmil Cable, 1/2" bolt holes, 1.75" spacing, NEMA hole sizes and spacing
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCF, Copper Conductor, 350 kcmil Class K, M, 373.7 kcmil DLO Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 1.53 in W x 0.22 in THK Tongue, 6.36 in Overall Length, Flared/Long without Inspection Window Barrel, 0.84 in ID x 1.22 in OD x 2.5 in L Barrel, 2-9/16 in Wire Strip Length, 90 deg C, 2-9/16 in Mounting Hole, Tin Plated Copper, Blue
Panduit - LCCF350-12-6 - Features
- Can be used with flex conductor class K, M and diesel locomotive
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For Use with flexible and extra-flexible copper conductors
- Can be used with flex conductor class: K, M, and Diesel Locomotive
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with PANDUIT die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and A Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCCF350-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCF350-12-6 |
| Bolt Hole | 1/2 Inch |
| Gauge | 350Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| DLO Copper Flex Conductor Size (kcmil) | 350 |
| Barrel Length (In.) | 2.5 |
| Barrel Length (mm) | 63.5 |
| Tongue Width (In.) | 1.53 |
| Tongue Width (mm) | 38.9 |
| Tongue Thickness (In.) | 0.22 |
| UPC | 07498371978 |
