Panduit LCCF4/0-38DH-X | Compression Connectors - Lugs | UPC - 0749...
Regular price
$22.20
Unit price
Brand: Panduit
|
SKU:
LCCF4/0-38DH-X
Regular price
$22.20
Unit price
Description
Description

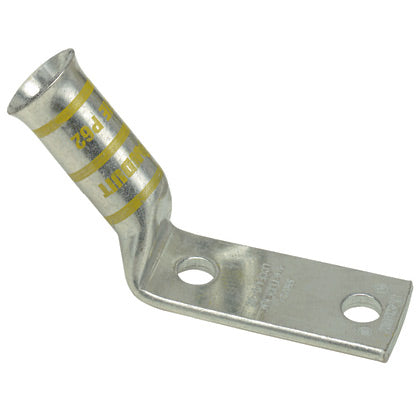

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCF, 4/0 AWG Conductor, Die Code: P62, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.53 in W x 0.22 in THK Tongue, 4.46 in Overall Length, Long Barrel, 2-1/2 in L Barrel, 90 deg C, 1.69 in Mounting Hole, Tin Plated Copper, Yellow
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCCF4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498389111 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Overall Length (In.) | 3.55 |
| Overall Length (mm) | 90.2 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.61 |
| Barrel Length (mm) | 40.9 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.69 |
| Wire Strip Length (mm) | 42.9 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry. |
Panduit LCCF4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498389111 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCF8-14AH-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCCF4_0-38DH-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCF4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498389111 Environmental Information
| Panduit's RoHS Statement | Download and View |
