Brand: Panduit
|
SKU:
LCCF400-12-6
Panduit LCCF400-12-6 | Compression Connectors - Lugs | UPC - 07498371980
Regular price
$62.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCF400-12-6 | Compression Connectors - Lugs | UPC - 074983...
Regular price
$62.66
Unit price
Description
Description

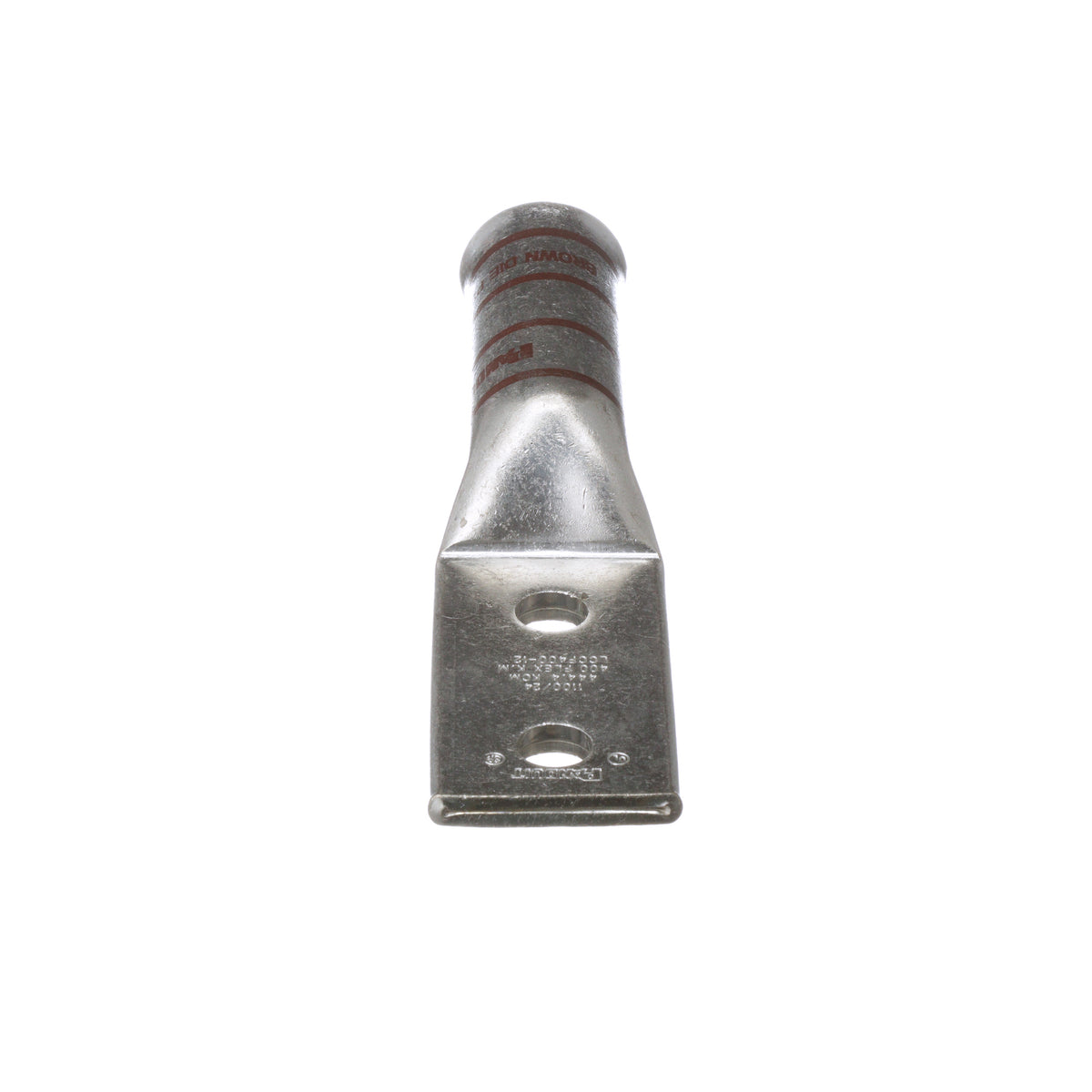

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCF, Copper Conductor, 400 kcmil Class K, M, 444.4 kcmil DLO Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 6.63 in Overall Length, Flared/Long without Inspection Window Barrel, 0.92 in ID x 1.34 in OD x 2.69 in L Barrel, 2-3/4 in Wire Strip Length, 90 deg C, 2-3/4 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Can be used with flex conductor class K, M and diesel locomotive
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For Use with flexible and extra-flexible copper conductors
Panduit LCCF400-12-6 | Compression Connectors - Lugs | UPC - 07498371980 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.69 |
| Barrel Length (mm) | 68.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 6.63 |
| Overall Length (mm) | 168.4 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Wire Strip Length (In.) | 2.75 |
| Wire Strip Length (mm) | 69.9 |
Panduit LCCF400-12-6 | Compression Connectors - Lugs | UPC - 07498371980 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCF8-14A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCCF400-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCF400-12-6 | Compression Connectors - Lugs | UPC - 07498371980 Environmental Information
| Panduit's RoHS Statement | Download and View |
