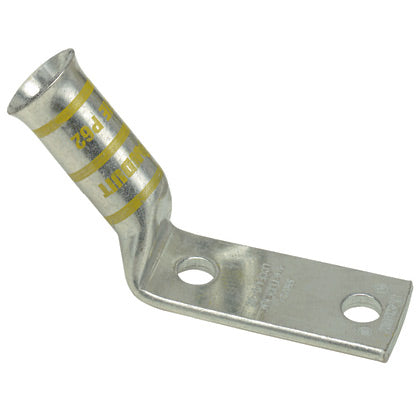

Panduit LCCF6-14AH-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$7.44
Unit price
Brand: Panduit
|
SKU:
LCCF6-14AH-L
Regular price
$7.44
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCF, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 45 deg Tongue, 1.89 in W x 0.26 in THK Tongue, 4.67 in Overall Length, Long Barrel, 2.88 in L Barrel, 90 deg C, 1.31 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCCF6-14AH-L | Compression Connectors - Lugs | UPC - 07498388040 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Overall Length (In.) | 2.36 |
| Overall Length (mm) | 59.9 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.22 |
| Barrel Length (mm) | 31 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.31 |
| Wire Strip Length (mm) | 33.3 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry. |
Panduit LCCF6-14AH-L | Compression Connectors - Lugs | UPC - 07498388040 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCF8-14AH-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCCF6-14AH-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCF6-14AH-L | Compression Connectors - Lugs | UPC - 07498388040 Environmental Information
| Panduit's RoHS Statement | Download and View |
