Panduit LCCF8-14A-L | Compression Connectors - Lugs | UPC - 0749837...
Regular price
$3.45
Unit price
Brand: Panduit
|
SKU:
824864
Regular price
$3.45
Unit price
Description
Description

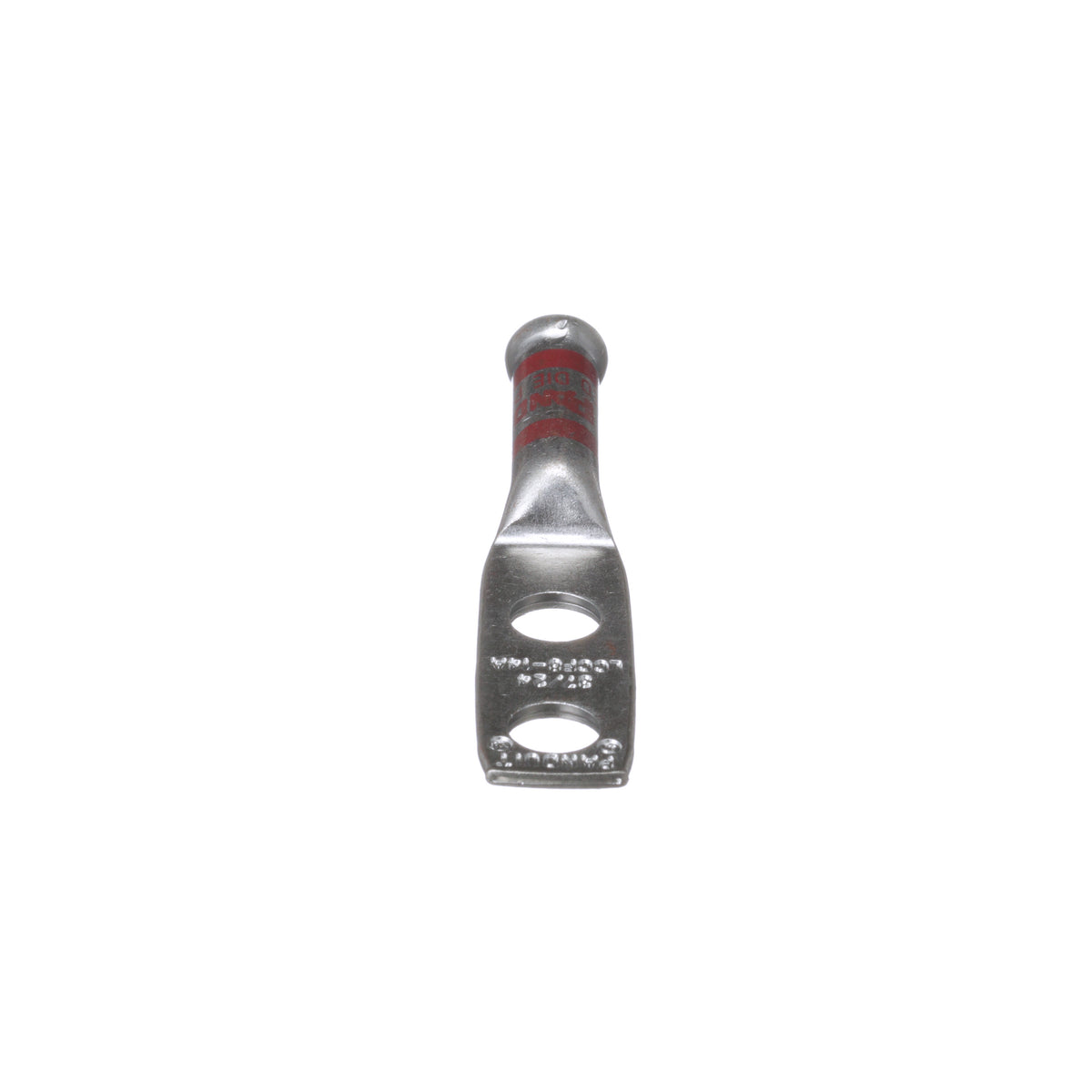

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCF, Copper Conductor, 8 AWG DLO Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 2.22 in Overall Length, Flared/Long without Inspection Window Barrel, 0.18 in ID x 0.32 in OD x 0.76 in L Barrel, 13/16 in Wire Strip Length, 90 deg C, 13/16 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Can be used with flex conductor class K, M and diesel locomotive
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For Use with flexible and extra-flexible copper conductors
Panduit LCCF8-14A-L Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 0.76 |
| Barrel Length (mm) | 19.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 2.22 |
| Overall Length (mm) | 56.4 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Wire Strip Length (mm) | 20.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry. |
Panduit LCCF8-14A-L Data Sheets
| Part Drawings | H***X122H*T-2Two-Sided Heat Shrink Label | Download and View |
| Application Guides | Identification Solutions for Harsh Environments: D-IDAG01--WW-ENG | Download and View |
| Line Cards | Thermal Transfer Labels DEU | Download and View |
