Brand: Panduit
|
SKU:
LCCH250-12-X
Panduit LCCH250-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390246
Regular price
$18.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCH250-12-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$18.19
Unit price
Description
Description

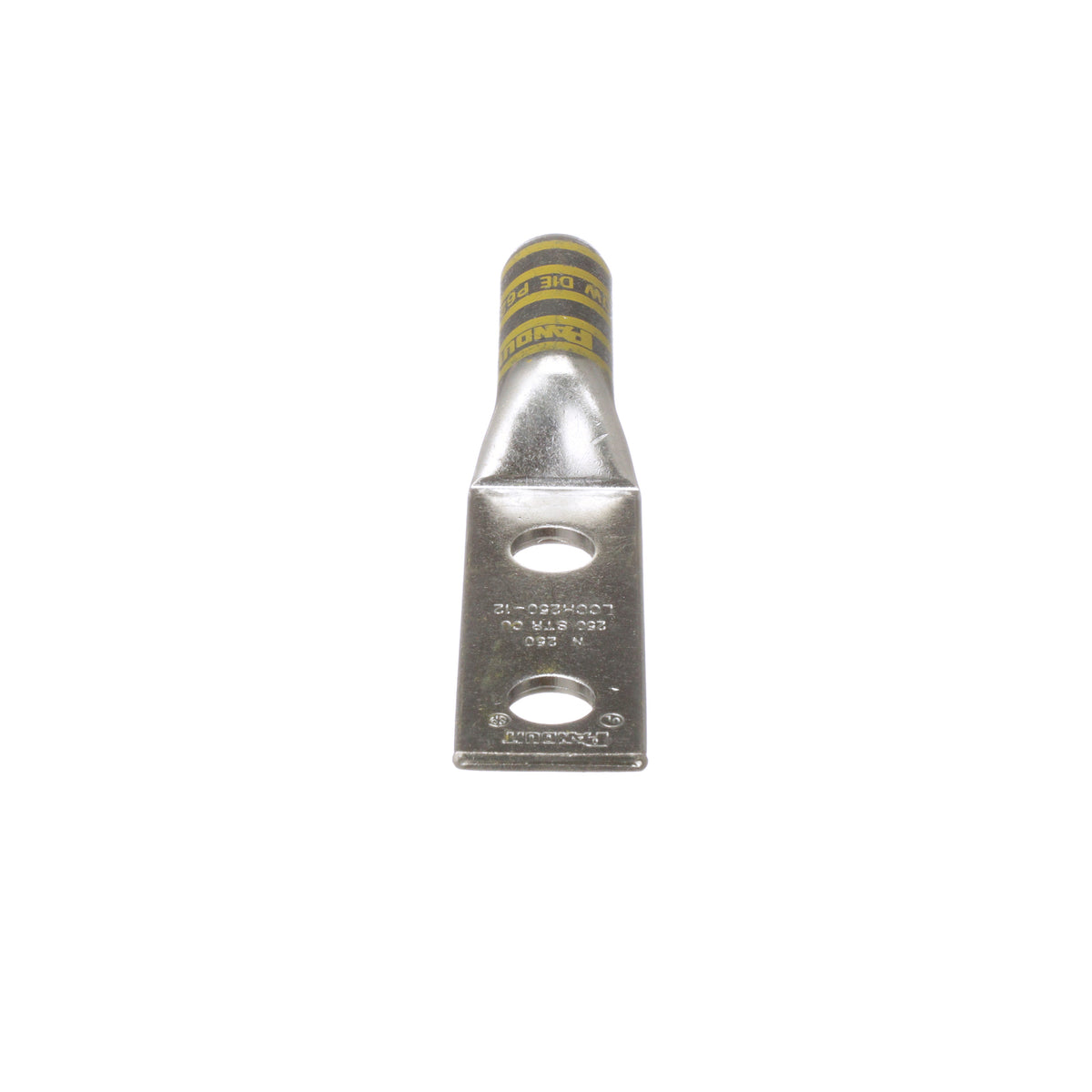

Two-hole, long barrel lug with corona relief taper, 250 kcmil cable, 1/2 stud holes, 1.75 hole spacing.
Panduit LCCH250-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390246 Key Specs
| Copper Conductor Size (kcmil) | 250 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window, Corona Relief |
| Barrel Length (In.) | 1.61 |
| Barrel Length (mm) | 40.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 5.23 |
| Overall Length (mm) | 132.8 |
| Color Code | Yellow |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
| Wire Strip Length (In.) | 1.06 |
Panduit LCCH250-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390246 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCH10-12-X Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit LCCH250-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390246 Environmental Information
| Panduit's RoHS Statement | Download and View |
