Brand: Panduit
|
SKU:
PAN-LCCH3/0-12-X

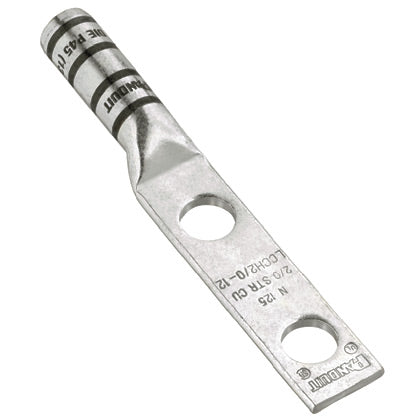

Panduit LCCH3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390236
Regular price
$13.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCH3/0-12-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$13.98
Unit price
Brand: Panduit
|
SKU:
PAN-LCCH3/0-12-X
Regular price
$13.98
Unit price
Shipping calculated at checkout.
Description
Description
Two-hole, long barrel lug with corona relief taper, 3/0 AWG wire, 1/2 stud holes, 1.75 hole spacing.
Panduit LCCH3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390236 Key Specs
| Copper Conductor Size (AWG) | 3/0 |
| Copper Conductor Size (kcmil) | 168 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window, Corona Relief |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 5.03 |
| Overall Length (mm) | 127.8 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
Panduit LCCH3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390236 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCH10-12-X Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit LCCH3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390236 Environmental Information
| Panduit's RoHS Statement | Download and View |
