Brand: Panduit
|
SKU:
PAN-LCCH500-12-6

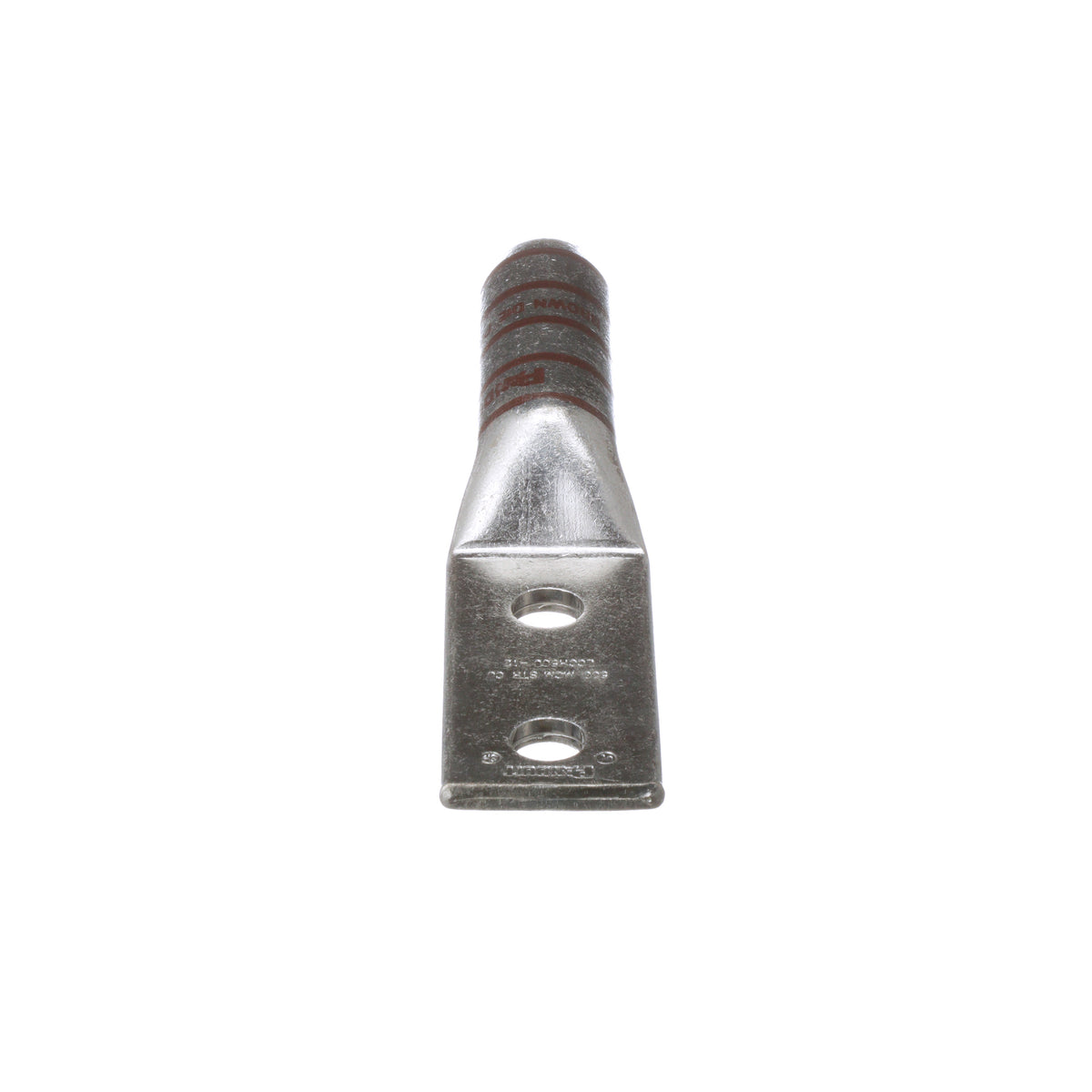

Panduit LCCH500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390266
Regular price
$30.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCH500-12-6 | Tin-Plated Copper Compression Connectors - L...
Regular price
$30.55
Unit price
Brand: Panduit
|
SKU:
PAN-LCCH500-12-6
Regular price
$30.55
Unit price
Shipping calculated at checkout.
Description
Description
Two-hole, long barrel lug with corona relief taper, 500 kcmil cable, 1/2 stud holes, 1.75 hole spacing.
Panduit LCCH500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390266 Key Specs
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window, Corona Relief |
| Barrel Length (In.) | 2.5 |
| Barrel Length (mm) | 63.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 6.36 |
| Overall Length (mm) | 161.5 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Wire Strip Length (In.) | 2.56 |
Panduit LCCH500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390266 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCCH10-12-X Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCCH500-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCH500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390266 Environmental Information
| Panduit's RoHS Statement | Download and View |
