Description
Description

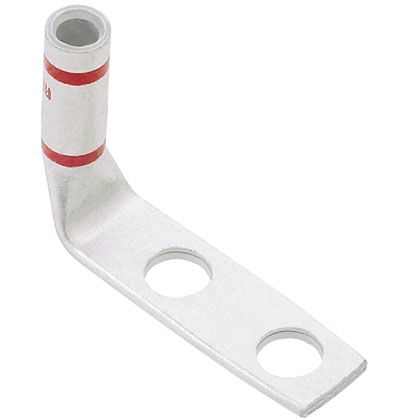

Panduit LCCX1/0-14BF-X | Pan-Lug LCCX1/0-14BF-X Compression Connectors - Lugs
Two-hole, flex lug, long barrel, 1/0 AWG wire, 1/4 stud hole, .75 hole spacing, 90° angle tongue.
Specifications
Specifications
Panduit - LCCX1/0-14BF-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCCX1/0-14BF-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCX1/0-14BF-X |
| Item Description | Pan-Lug LCCX1/0-14BF-X Compression Connectors - Lugs |
| Product Type | Compression Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 1/0 |
| Class H Copper Flex Conductor Size (AWG) | 1/0 |
| Class I Copper Flex Conductor Size (AWG) | 1/0 |
| Class K Copper Flex Conductor Size (AWG) | 1/0 |
| Class M Copper Flex Conductor Size (AWG) | 1/0 |
| Copper Code Conductor Size (AWG) | 1/0 |
| DLO Copper Flex Conductor Size (AWG) | 1/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.34 |
| Overall Length (mm) | 59.4 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 40 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Brand Name - LCCX1/0-14BF-X - Package Information
| UPC | 07498342622 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0305 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCCX1/0-14BF-X - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
