Brand: Panduit
|
SKU:
LCCX1-14A-X
Panduit LCCX1-14A-X | Compression Connectors - Lugs | UPC - 07498342561
Regular price
$9.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX1-14A-X | Compression Connectors - Lugs | UPC - 0749834...
Regular price
$9.74
Unit price
Description
Description

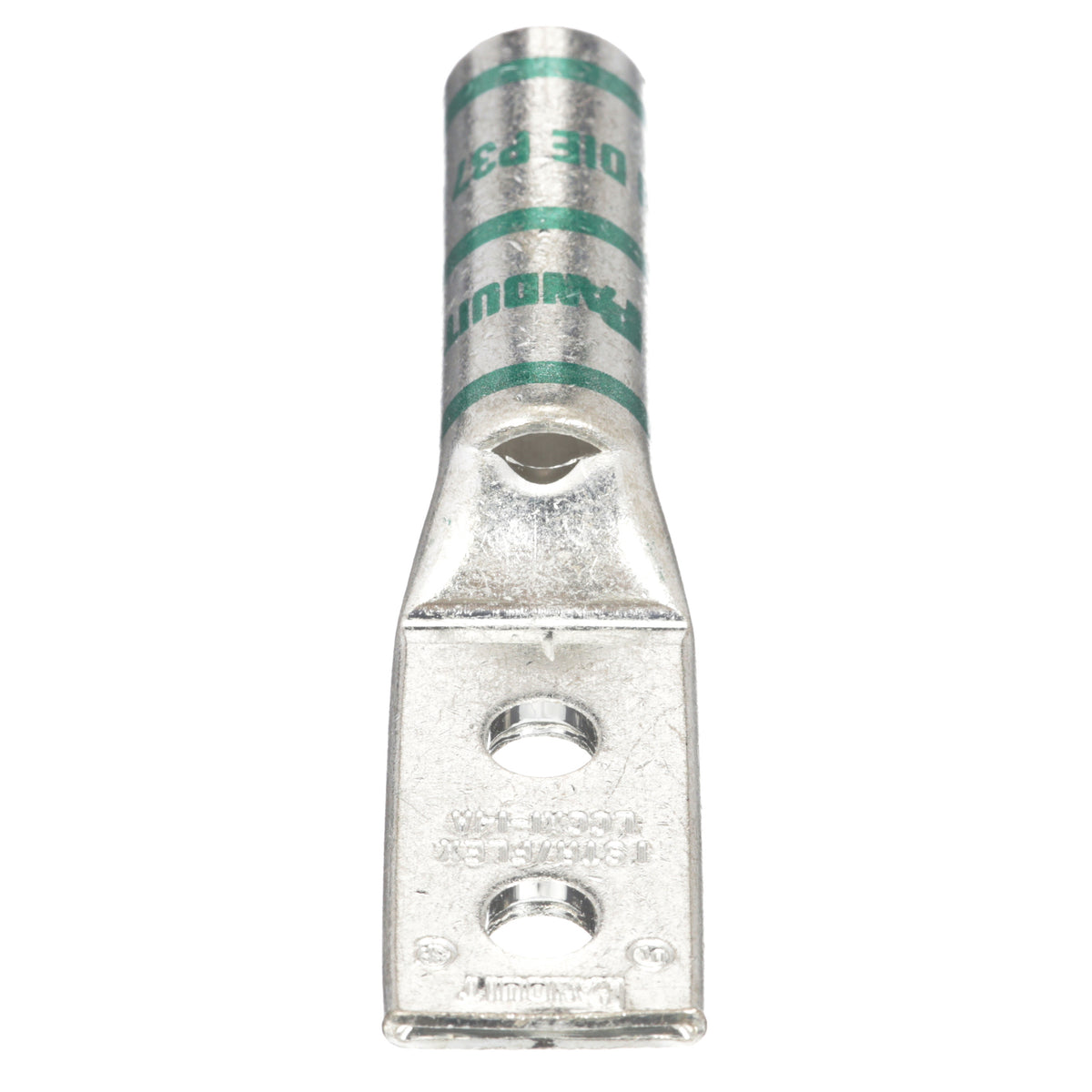

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 3.07 in Overall Length, Long Barrel, 1.44 in L Barrel, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX1-14A-X | Compression Connectors - Lugs | UPC - 07498342561 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 3.07 |
| Overall Length (mm) | 78 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (In.) | 1.5 |
Panduit LCCX1-14A-X | Compression Connectors - Lugs | UPC - 07498342561 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX1-14A-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX1-14A-X | Compression Connectors - Lugs | UPC - 07498342561 Environmental Information
| Panduit's RoHS Statement | Download and View |
