Panduit LCCX2/0-12-X | Compression Connectors - Lugs | UPC - 074983...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
PAN-LCCX2/0-12-X
Regular price
$13.19
Unit price
Description
Description

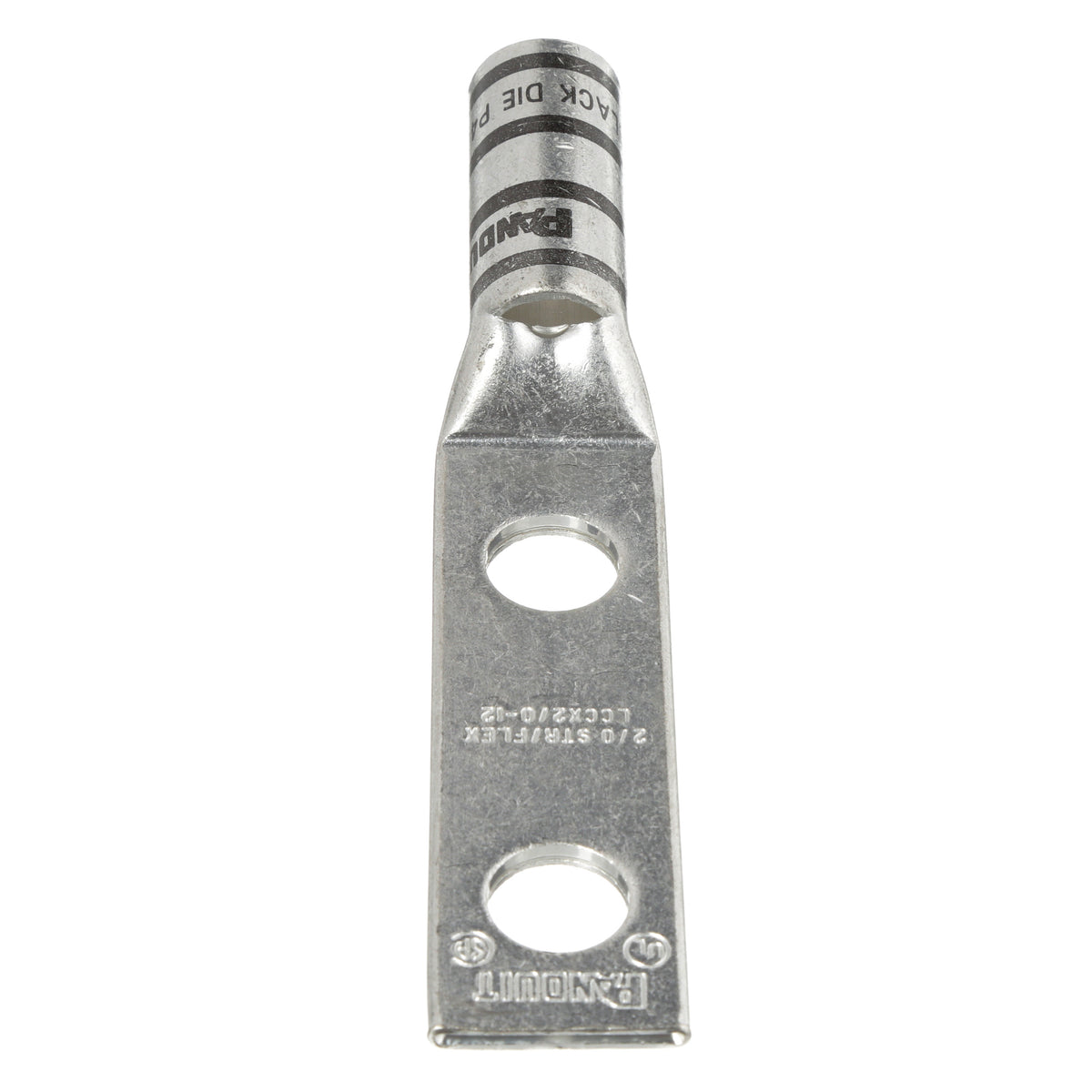

Panduit Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 4.87 in Overall Length, Long/Standard Barrel, 0.51 in ID x 0.64 in OD x 1.5 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 1.56 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Copper, Black
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCCX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342587 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 4.87 |
| Overall Length (mm) | 123.7 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| Wire Strip Length (In.) | 1.56 |
Panduit LCCX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342587 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX2_0-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342587 Environmental Information
| Panduit's RoHS Statement | Download and View |
