Brand: Panduit
|
SKU:
LCCX2/0-14A-X

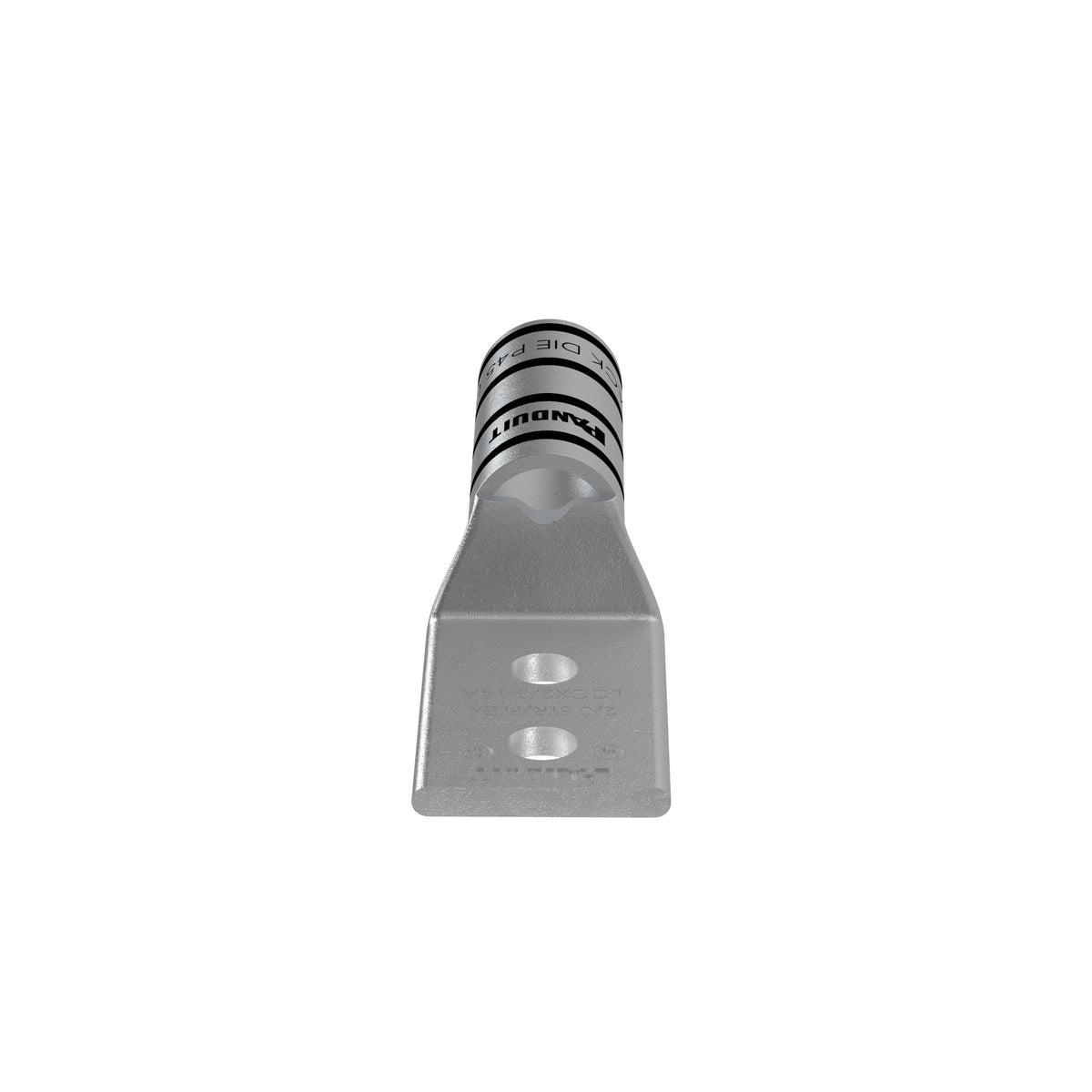

Panduit LCCX2/0-14A-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342580
Regular price
$11.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX2/0-14A-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$11.62
Unit price
Brand: Panduit
|
SKU:
LCCX2/0-14A-X
Regular price
$11.62
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.27 in Overall Length, Long Barrel, 1-1/2 in L Barrel, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX2/0-14A-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342580 Key Specs
| Inside Diameter (In.) | 0.51 |
| Inside Diameter (mm) | 12.95 |
| Outer Diameter (In.) | 0.64 |
| Outer Diameter (mm) | 16.25 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2/0 |
| DLO Copper Flex Conductor Size (AWG) | 2/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
Panduit LCCX2/0-14A-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342580 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX2_0-14A-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX2/0-14A-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342580 Environmental Information
| Panduit's RoHS Statement | Download and View |
