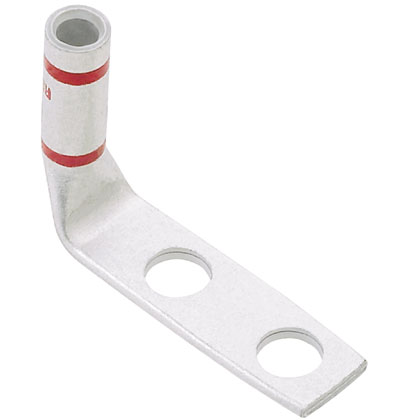

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, 90 deg Tongue, 0.96 in W x 0.13 in THK Tongue, 2.73 in Overall Length, Long Barrel, 1-1/2 in L Barrel, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX2/0-38DF-X | Compression Connectors - Lugs | UPC - 07498342586 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.73 |
| Overall Length (mm) | 69.3 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| Wire Strip Length (In.) | 1.56 |
Panduit LCCX2/0-38DF-X | Compression Connectors - Lugs | UPC - 07498342586 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX2_0-38DF-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX2/0-38DF-X | Compression Connectors - Lugs | UPC - 07498342586 Environmental Information
| Panduit's RoHS Statement | Download and View |
