Brand: Panduit
|
SKU:
LCCX2-14AH-E
Panduit LCCX2-14AH-E | Compression Connectors - Lugs | UPC - 07498342554
Regular price
$14.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX2-14AH-E | Compression Connectors - Lugs | UPC - 074983...
Regular price
$14.50
Unit price
Description
Description

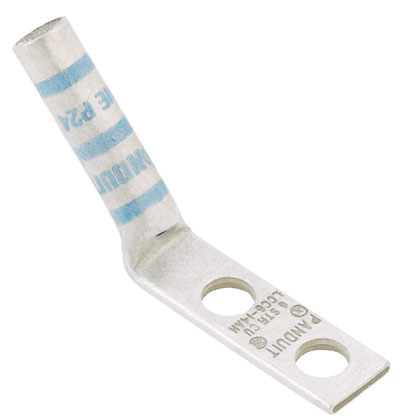

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, 45 deg Tongue, 0.7 in W x 0.11 in THK Tongue, 2.46 in Overall Length, Long Barrel, 1.36 in L Barrel, 90 deg C, 1.44 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX2-14AH-E | Compression Connectors - Lugs | UPC - 07498342554 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.36 |
| Barrel Length (mm) | 34.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 2.46 |
| Overall Length (mm) | 62.5 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| Wire Strip Length (In.) | 1.44 |
Panduit LCCX2-14AH-E | Compression Connectors - Lugs | UPC - 07498342554 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - D-PCCC1-WW-ENG-LCCX8-10AH | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX2-14AH-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX2-14AH-E | Compression Connectors - Lugs | UPC - 07498342554 Environmental Information
| Panduit's RoHS Statement | Download and View |
