Panduit LCCX3/0-38D-X | Compression Connectors - Lugs | UPC - 07498...
Description
Description

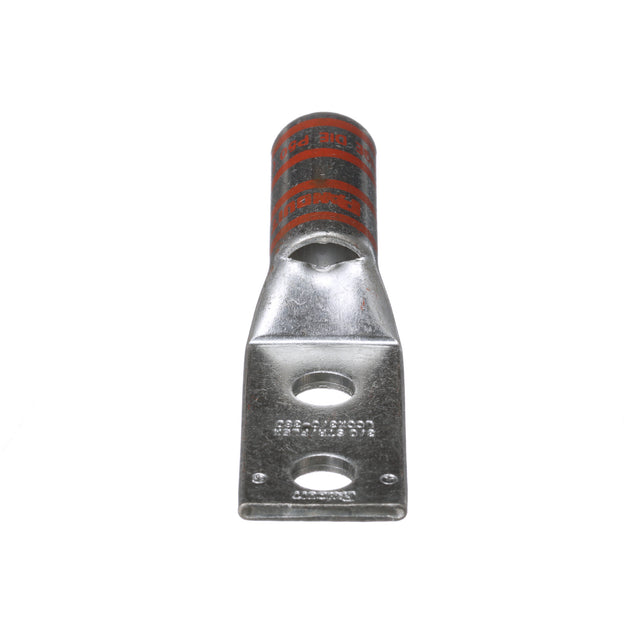

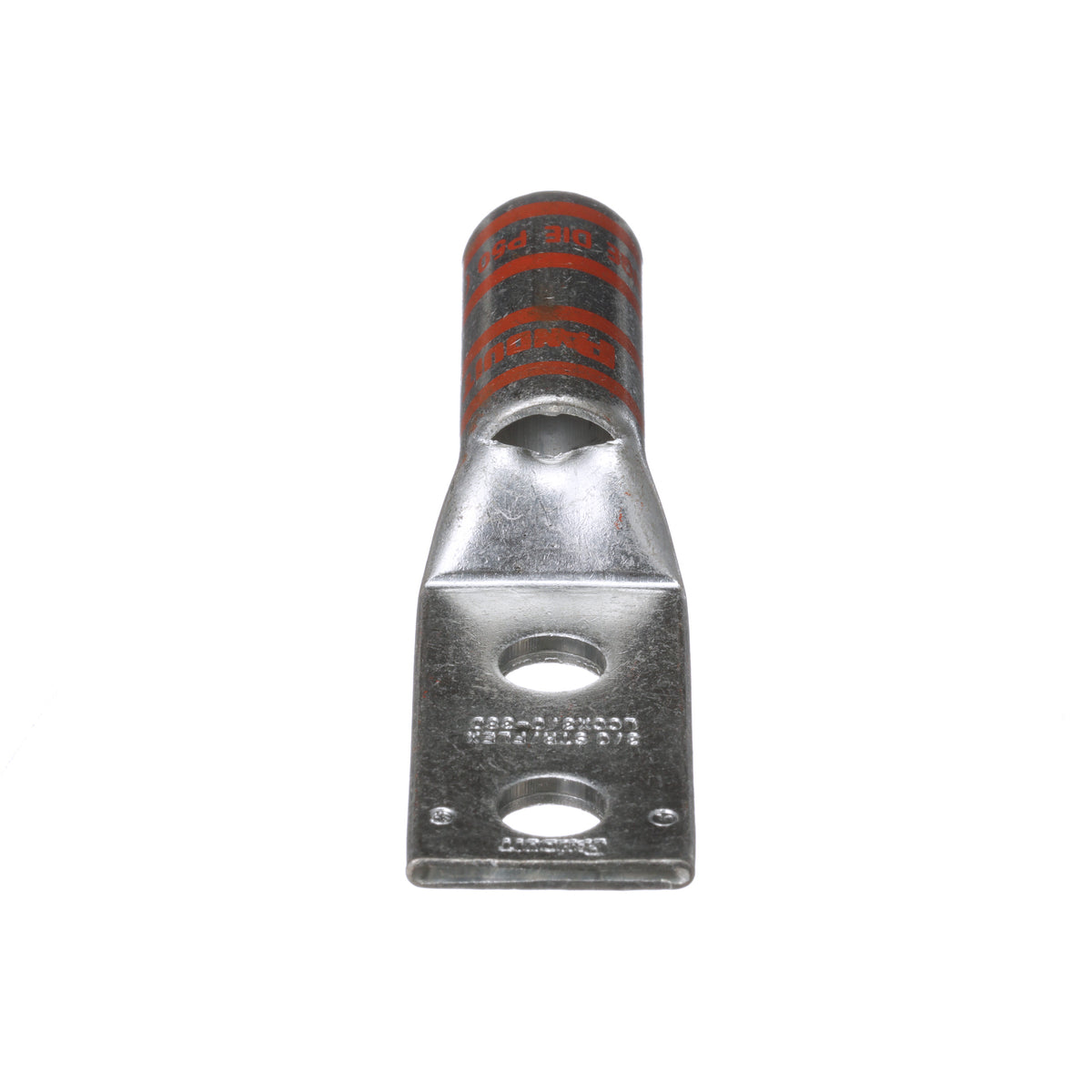

Panduit Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 3.81 in Overall Length, Long/Standard Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1.63 in L Wire Strip, Tin Plated, 90 deg C, 1.63 in Mounting Hole, Copper, Orange
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCCX3/0-38D-X | Compression Connectors - Lugs | UPC - 07498342591 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.56 |
| Barrel Length (mm) | 39.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 3.81 |
| Overall Length (mm) | 96.8 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
| Wire Strip Length (In.) | 1.63 |
Panduit LCCX3/0-38D-X | Compression Connectors - Lugs | UPC - 07498342591 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX3_0-38D-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX3/0-38D-X | Compression Connectors - Lugs | UPC - 07498342591 Environmental Information
