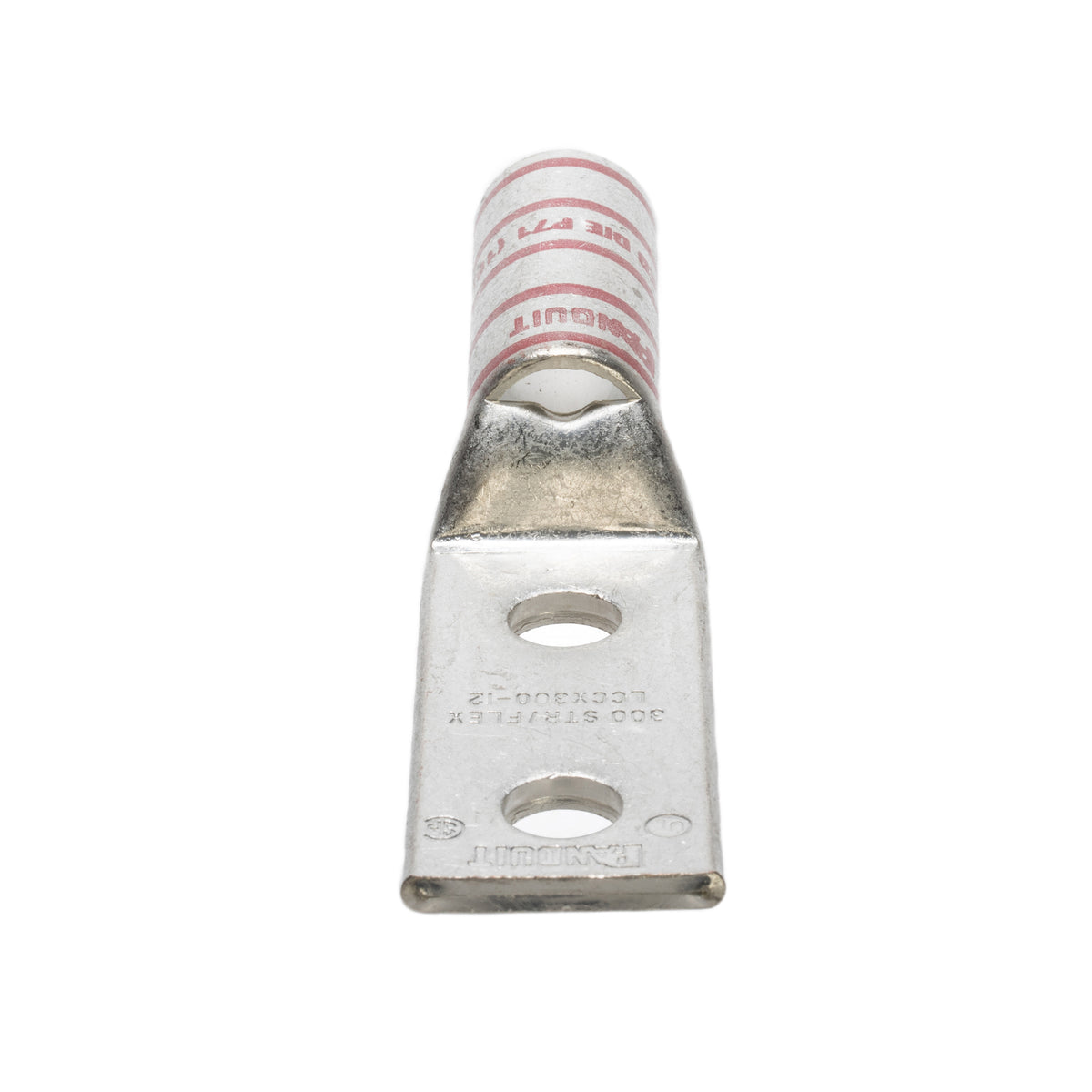

Panduit LCCX300-12-6 | Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX300-12-6 | Pan-Lug™ Copper 2 Hole Straight Tongue Compr...
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 300 kcmil Conductor, 35 kV, 1/2 in Stud, Long Barrel, 90 deg C, Tin Plated Copper, Red
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
The LCCX300-12-6 Tin Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provide s premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Panduit - LCCX300-12-6 - Features
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - LCCX300-12-6 - Specifications
| Inspection Hole | No |
|---|---|
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Technical Information | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Class G Copper Flex Conductor Size (kcmil) | 300 |
| Class H Copper Flex Conductor Size (kcmil) | 300 |
| Class I Copper Flex Conductor Size (kcmil) | 300 |
| Class K Copper Flex Conductor Size (kcmil) | 300 |
| Class M Copper Flex Conductor Size (kcmil) | 300 |
| DLO Copper Flex Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 2.3 |
| Barrel Length (mm) | 58.4 |
| UPC | 07498344562 |
Panduit - LCCX300-12-6 - Package Information
| UPC | 07498344562 |
|---|---|
| Standard Packaging Quantity | 6 |
| Standard Packaging Volume (cf) | 0.0583 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
