Panduit LCCX4/0-12-X | Pan-Lug Comp. Lug, 4/0, Flex, Tin Plt Copper...
Description
Description

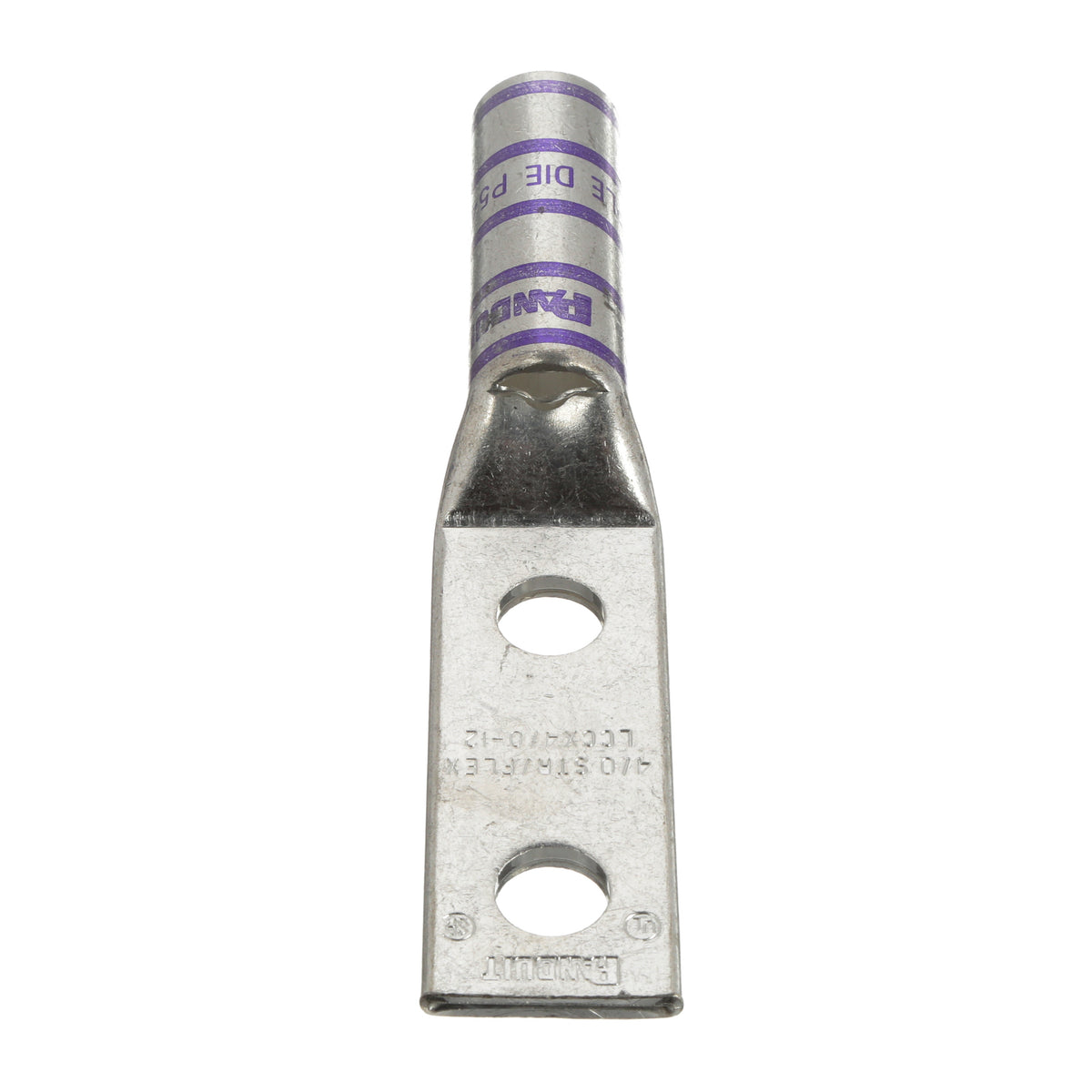

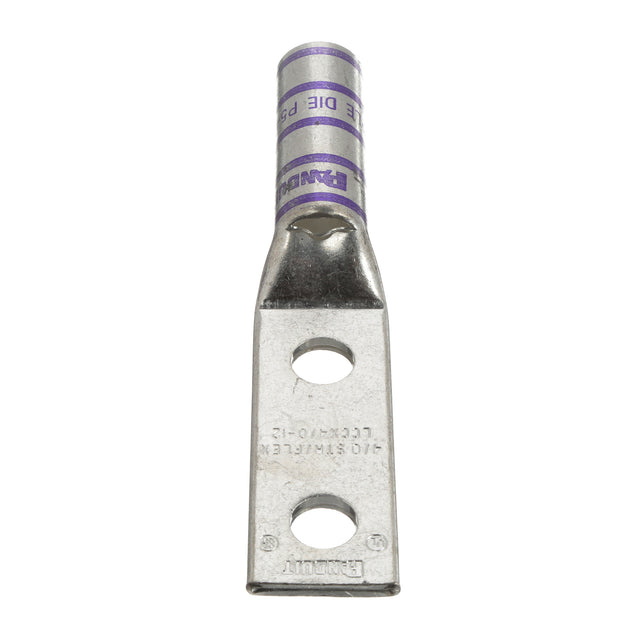

Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Flex lug, long barrel, 4/0 AWG, 2-hole, 1/2" stud holes, 1.75 hole spacing.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCX, Copper Conductor, 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 5.73 in Overall Length, Long/Standard with Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 2.24 in L Barrel, 2.31 in Wire Strip Length, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, Purple
Panduit - LCCX4/0-12-X - Features
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCCX4/0-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCX4/0-12-X |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 4/0 Awg |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (AWG) | 4/0 |
| Class G Copper Flex Conductor Size (AWG) | 4/0 |
| Class H Copper Flex Conductor Size (AWG) | 4/0 |
| Class I Copper Flex Conductor Size (AWG) | 4/0 |
| Class K Copper Flex Conductor Size (AWG) | 4/0 |
| Class M Copper Flex Conductor Size (AWG) | 4/0 |
| DLO Copper Flex Conductor Size (AWG) | 4/0 |
| Barrel Length (In.) | 2.24 |
| UPC | 07498343778 |
