Brand: Panduit
|
SKU:
LCCX4/0-14B-X
Panduit LCCX4/0-14B-X | Compression Connectors - Lugs | UPC - 07498357944
Regular price
$17.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX4/0-14B-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$17.14
Unit price
Brand: Panduit
|
SKU:
LCCX4/0-14B-X
Regular price
$17.14
Unit price
Shipping calculated at checkout.
Description
Description

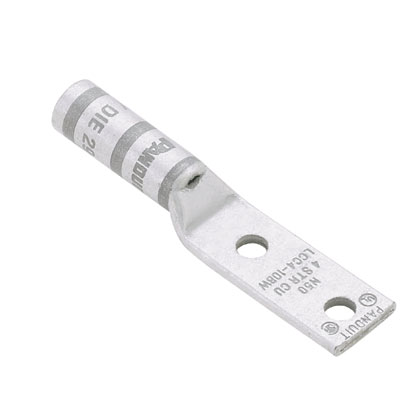

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCX, Copper Conductor, 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P54, 35 kV, 1/4 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 4.07 in Overall Length, Long/Standard with Inspection Window Barrel, 2.24 in L Barrel, 2.31 in Wire Strip Length, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCCX4/0-14B-X | Compression Connectors - Lugs | UPC - 07498357944 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 4.07 |
| Overall Length (mm) | 103.4 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 2.31 |
Panduit LCCX4/0-14B-X | Compression Connectors - Lugs | UPC - 07498357944 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation | Download and View |
Panduit LCCX4/0-14B-X | Compression Connectors - Lugs | UPC - 07498357944 Environmental Information
| Panduit's RoHS Statement | Download and View |
