Brand: Panduit
|
SKU:
1025042

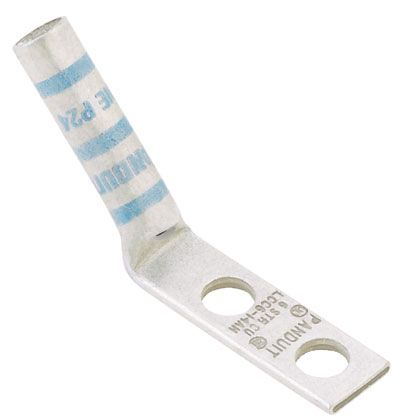

Panduit LCCX4/0-14BH-X | Compression Connectors - Lugs | UPC - 07498357949
Regular price
$18.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX4/0-14BH-X | Compression Connectors - Lugs | UPC - 0749...
Regular price
$18.19
Unit price
Description
Description
Panduit Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/4 in Stud, 45 deg Tongue, 1.19 in W x 0.16 in THK Tongue, 3.45 in Overall Length, Long/Inspection Window Barrel, 2.24 in L Barrel, 3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 2.31 in Mounting Hole, Copper, Purple
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX4/0-14BH-X Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 3.45 |
| Overall Length (mm) | 87.6 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 2.31 |
| Wire Strip Length (mm) | 59 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Panduit LCCX4/0-14BH-X Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation | Download and View |
