Brand: Panduit
|
SKU:
10021198

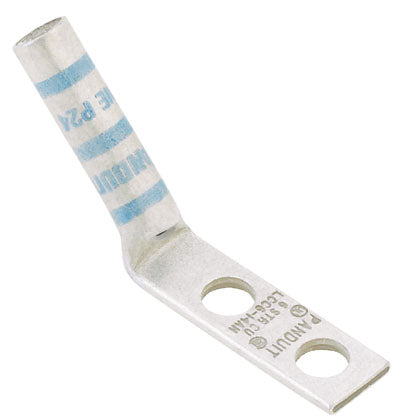

Panduit LCCX4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498342596
Regular price
$25.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX4/0-38DH-X | Compression Connectors - Lugs | UPC - 0749...
Regular price
$25.06
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.19 in W x 0.16 in THK Tongue, 3.93 in Overall Length, Long Barrel, 2.24 in L Barrel, 90 deg C, 2.31 in Mounting Hole, Tin Plated Copper, Purple
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit Panduit LCCX4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498342596 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 3.93 |
| Overall Length (mm) | 99.8 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 2.31 |
Panduit Panduit LCCX4/0-38DH-X | Compression Connectors - Lugs | UPC - 07498342596 Environmental Information
| Panduit's RoHS Statement | Download and View |
