Panduit LCCX4-14AB-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
LCCX4-14AB-L
Regular price
$9.28
Unit price
Description
Description

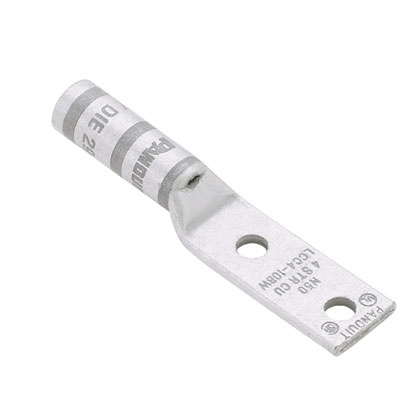

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCX, Copper Conductor, 4 AWG Class B, C, G, H, I, K, M and 5, 4, 3 AWG DLO Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2.63 in Overall Length, Long/Standard with Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, 1.13 in Wire Strip Length, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCCX4-14AB-L | Compression Connectors - Lugs | UPC - 07498334504 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.63 |
| Overall Length (mm) | 66.8 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 1.13 |
Panduit LCCX4-14AB-L | Compression Connectors - Lugs | UPC - 07498334504 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX4-14AB-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX4-14AB-L | Compression Connectors - Lugs | UPC - 07498334504 Environmental Information
| Panduit's RoHS Statement | Download and View |
