Panduit LCCX4-38B-L | Compression Connectors - Lugs | UPC - 0749834...
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
LCCX4-38B-L
Regular price
$9.28
Unit price
Description
Description

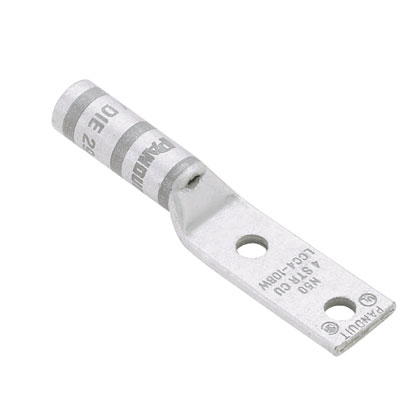

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 4/5 to 3 AWG Conductor, Die Code: P29, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.08 in THK Tongue, 2.84 in Overall Length, Long Barrel, 1.05 in L Barrel, 90 deg C, 1.13 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX4-38B-L | Compression Connectors - Lugs | UPC - 07498342549 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.84 |
| Overall Length (mm) | 72.1 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 1.13 |
Panduit LCCX4-38B-L | Compression Connectors - Lugs | UPC - 07498342549 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX4-38B-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX4-38B-L | Compression Connectors - Lugs | UPC - 07498342549 Environmental Information
| Panduit's RoHS Statement | Download and View |
