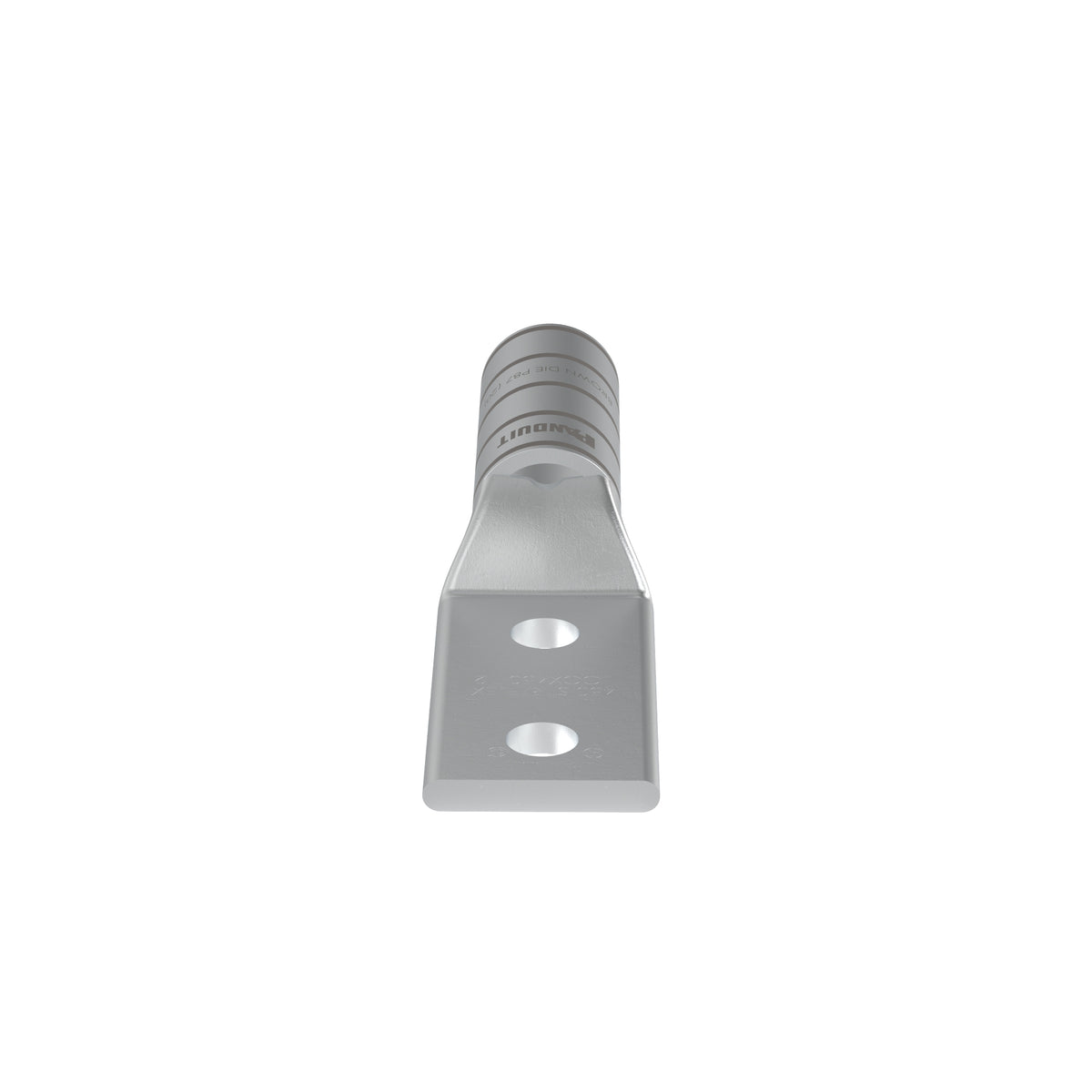

Panduit LCCX450-12-6 | Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX450-12-6 | Pan-Lug™ Copper 2 Hole Straight Tongue Compr...
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCX, Copper Conductor, 450 kcmil Class G, H, I, K, M, 444.4 kcmil DLO Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 6.37 in Overall Length, Long/Standard with Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 2.69 in L Barrel, 2-3/4 in Wire Strip Length, 90 deg C, 2-3/4 in Mounting Hole, Tin Plated Copper, Brown
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
The LCCX450-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provide s premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Panduit - LCCX450-12-6 - Features
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
Specifications
Specifications
Panduit - LCCX450-12-6 - Specifications
| Holes | 2 Hole |
|---|---|
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Technical Information | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Class G Copper Flex Conductor Size (kcmil) | 450 |
| Class H Copper Flex Conductor Size (kcmil) | 450 |
| Class I Copper Flex Conductor Size (kcmil) | 450 |
| Class K Copper Flex Conductor Size (kcmil) | 450 |
| Class M Copper Flex Conductor Size (kcmil) | 450 |
| DLO Copper Flex Conductor Size (kcmil) | 450 |
| Barrel Length (In.) | 2.69 |
| Barrel Length (mm) | 68.3 |
| UPC | 07498319820 |
Panduit - LCCX450-12-6 - Package Information
| UPC | 07498319820 |
|---|---|
| Standard Packaging Quantity | 6 |
| Standard Packaging Volume (cf) | 0.0500 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
