Brand: Panduit
|
SKU:
10192593

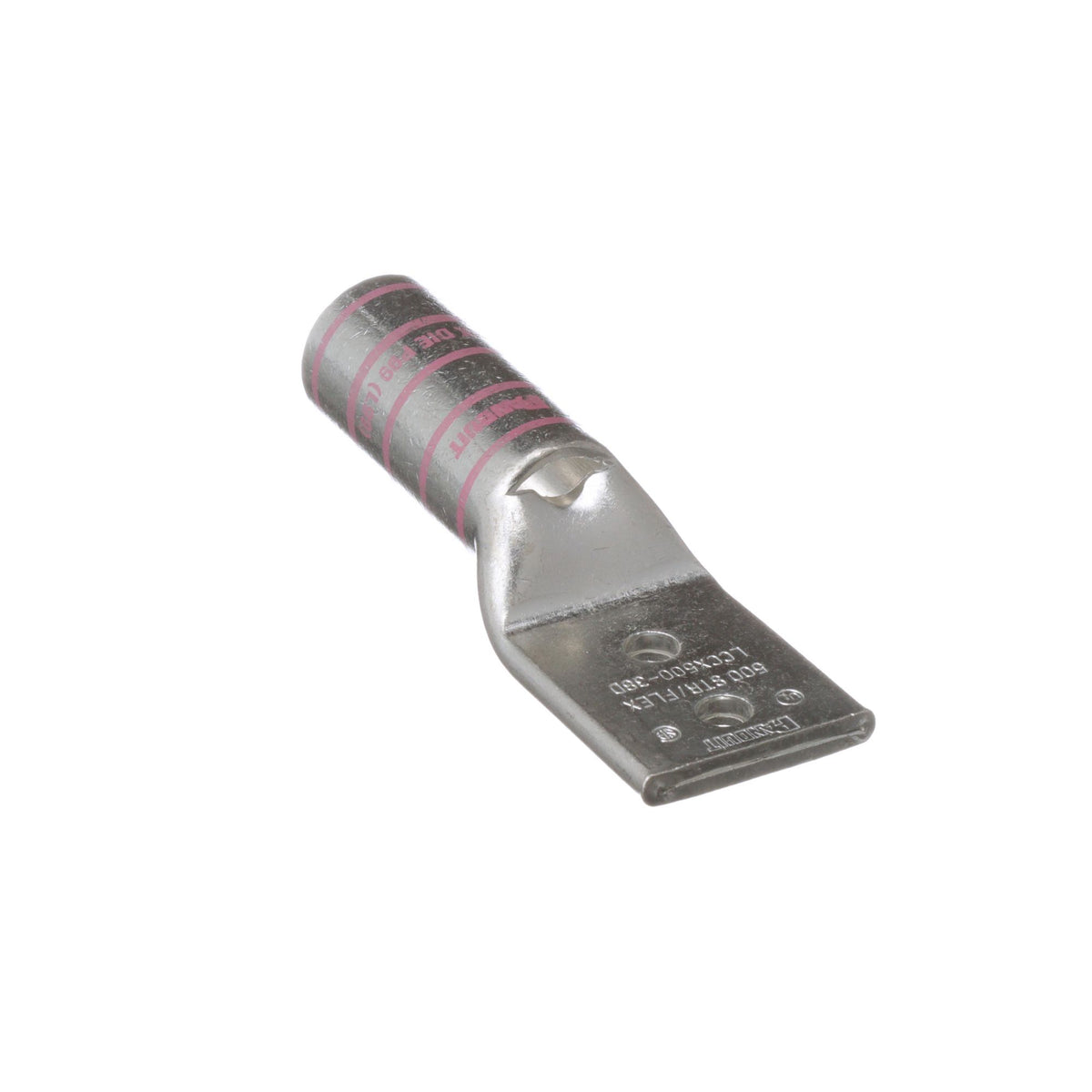

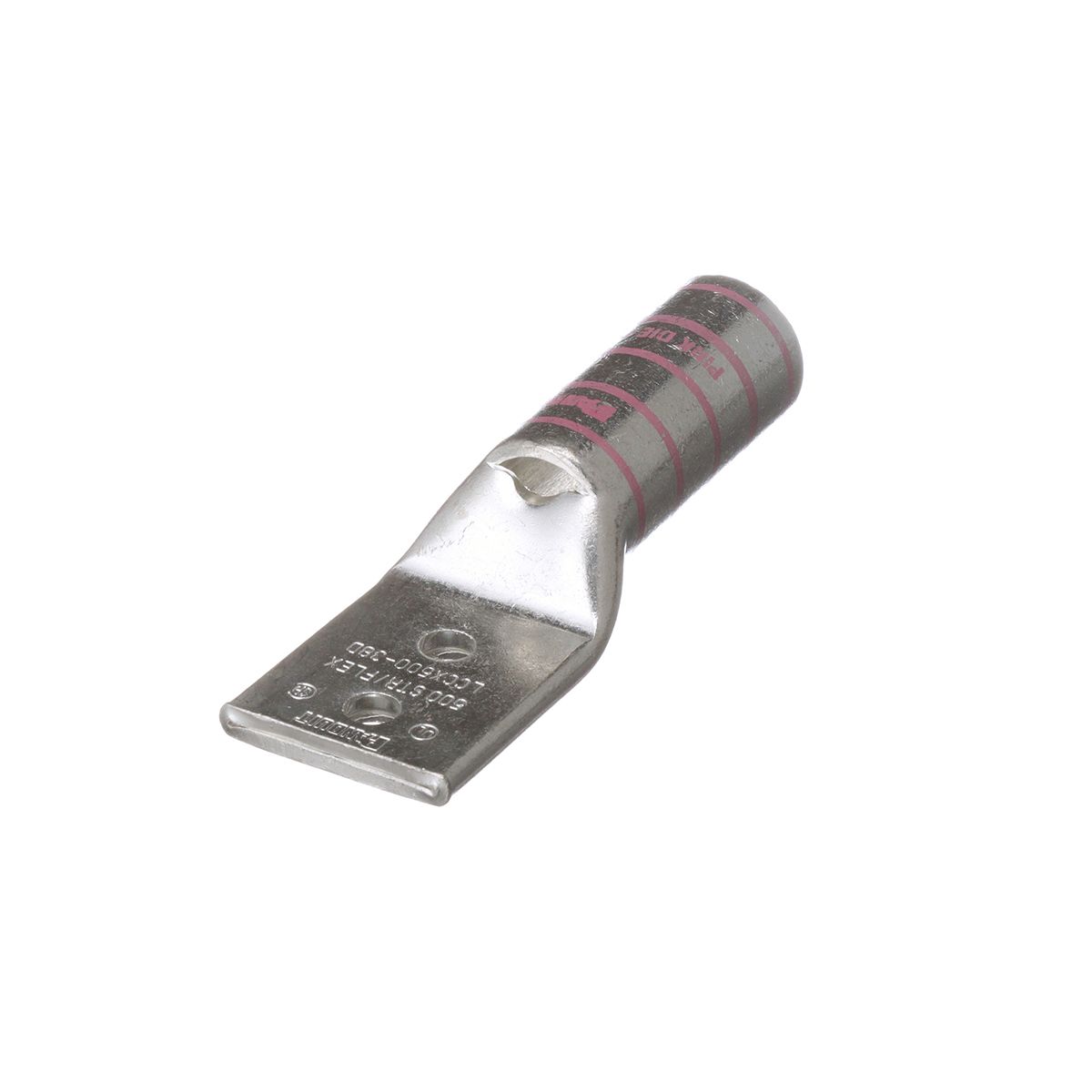

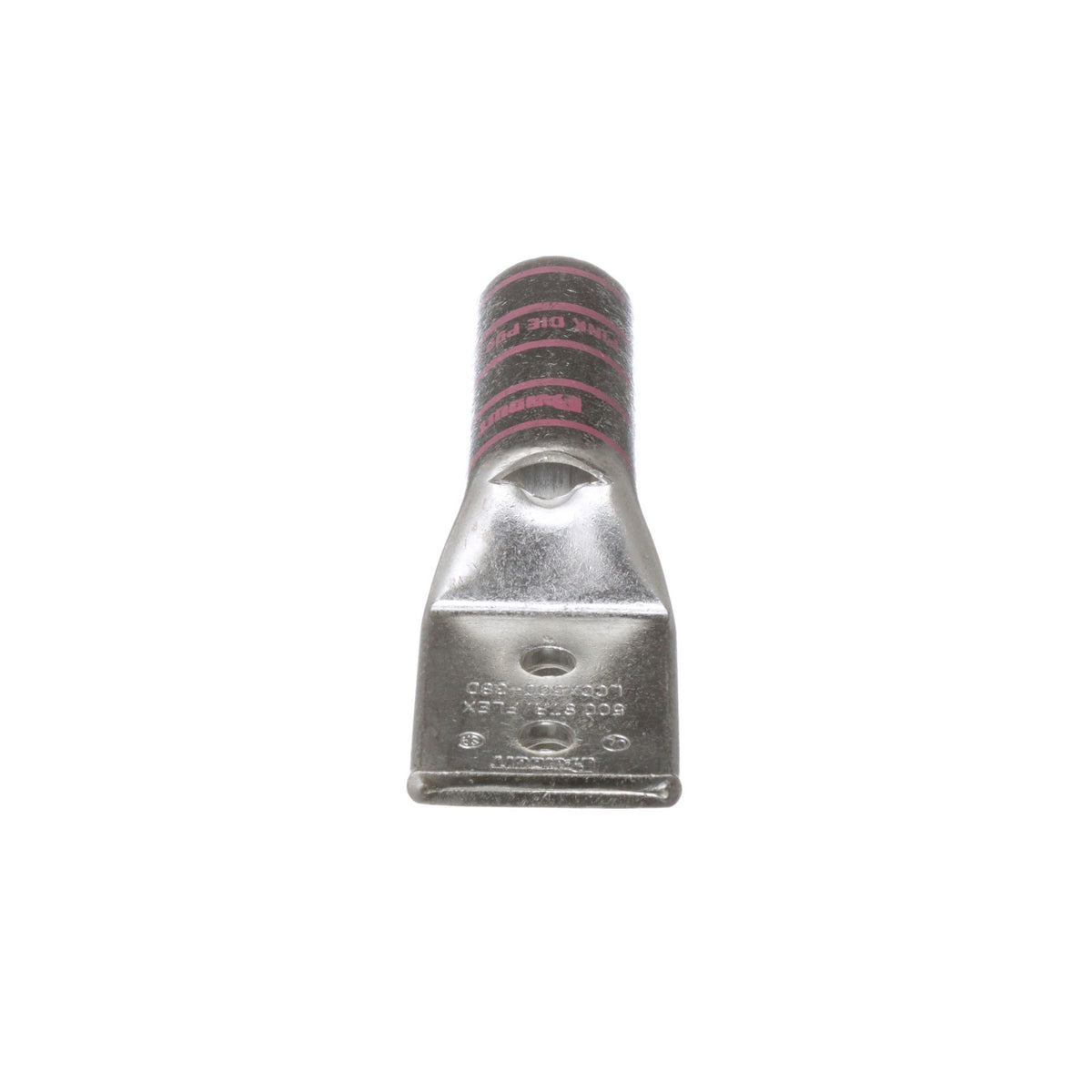

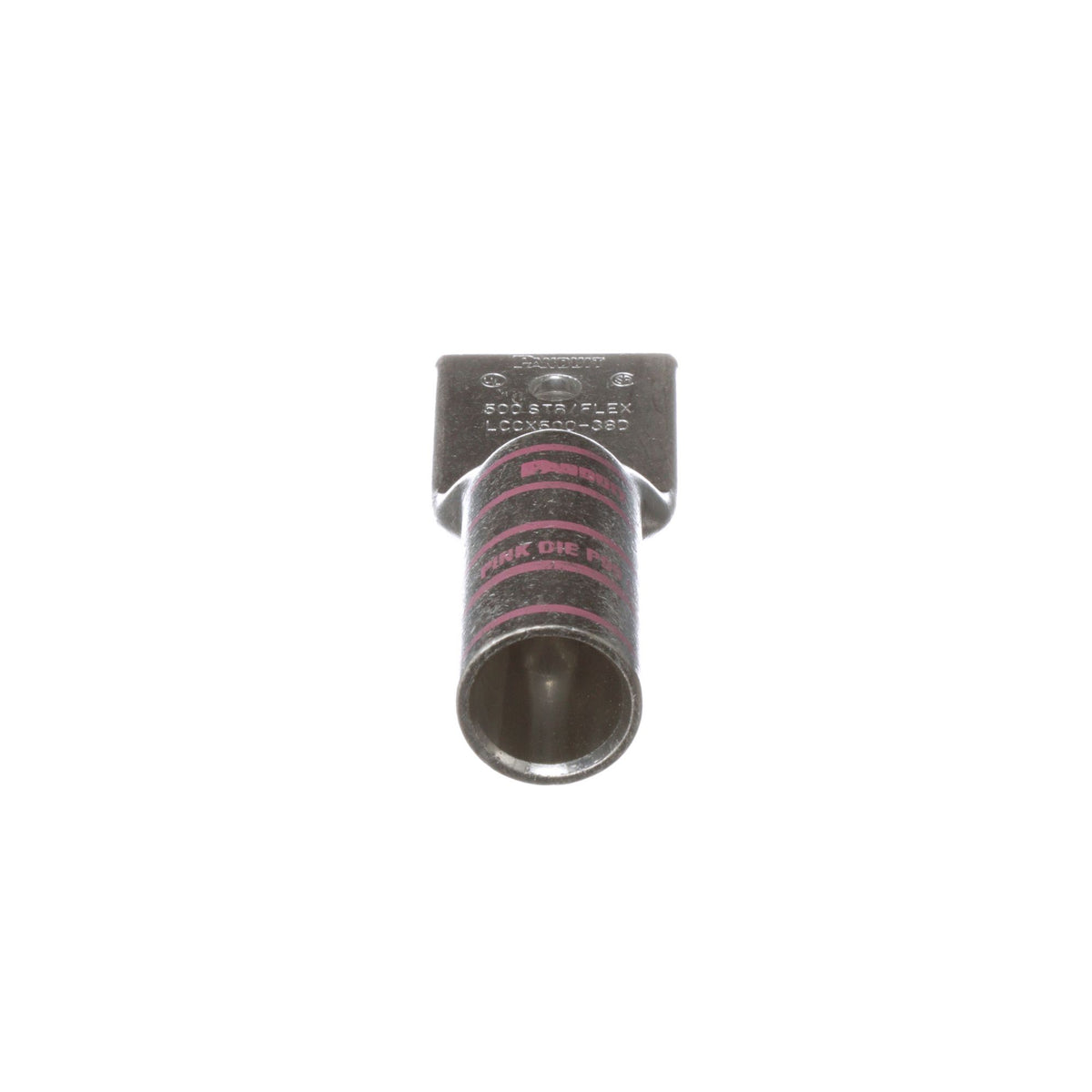

Panduit LCCX500-38D-6 | Pan-Lug LCCX500-38D-6 Compression Connectors - Lugs
Regular price
$50.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX500-38D-6 | Pan-Lug LCCX500-38D-6 Compression Connector...
Regular price
$50.91
Unit price
Description
Description
Panduit LCCX500-38D-6 | Pan-Lug LCCX500-38D-6 Compression Connectors - Lugs
Two-hole, flex lug, long barrel, 500 kcmil cable, 3/8 stud hole, 1 hole spacing.
Panduit LCCX500-38D-6 | Two-hole, Flex Lug, Long Barrel, 500 Kcmil Cable, 3/8 Stud Hole, 1 Hole Spacing, 6 Pack
Panduit - LCCX500-38D-6 - Features
- Two-hole, flex lug, long barrel, 500 kcmil cable, 3/8 stud hole, 1 hole spacing.
Specifications
Specifications
Panduit - LCCX500-38D-6 - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCCX500-38D-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCCX500-38D-6 |
| Item Description | Pan-Lug LCCX500-38D-6 Compression Connectors - Lugs |
| Product Type | Compression Connectors - Lugs |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (kcmil) | 500 |
| Class H Copper Flex Conductor Size (kcmil) | 500 |
| Class I Copper Flex Conductor Size (kcmil) | 500 |
| Class K Copper Flex Conductor Size (kcmil) | 500 |
| Class M Copper Flex Conductor Size (kcmil) | 500 |
| DLO Copper Flex Conductor Size (kcmil) | 535 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.88 |
| Barrel Length (mm) | 73.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.89 |
| Tongue Width (mm) | 48 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 5.72 |
| Overall Length (mm) | 145.3 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Panduit Die Index Number | P99 |
| Burndy Die Index Number | L99 |
| Wire Strip Length (In.) | 2.94 |
| Wire Strip Length (mm) | 74.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Panduit - LCCX500-38D-6 - Package Information
| UPC | 07498357961 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0681 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCCX500-38D-6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
