Brand: Panduit
|
SKU:
LCCX6-14A-L

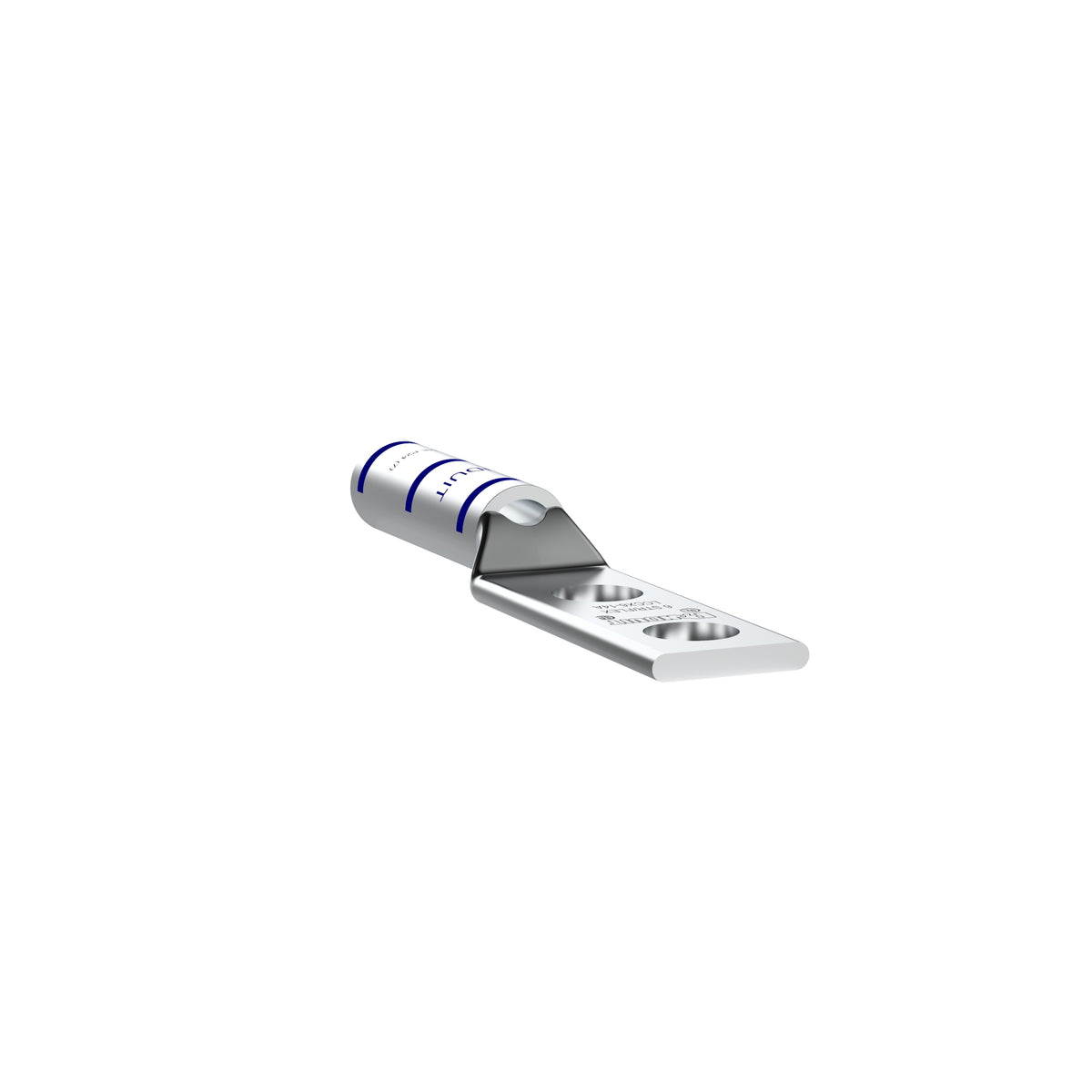

Panduit LCCX6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342535
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCCX6-14A-L | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$8.10
Unit price
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.49 in Overall Length, Long/Standard Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, Specifications: 0.63 in Stud Hole Spacing, 1.13 in L Wire Strip, Tin Plated, 90 deg C, 1-1/8 in Mounting Hole, Copper, Blue
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCCX6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342535 Key Specs
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 6 |
| Class H Copper Flex Conductor Size (AWG) | 6 |
| Class I Copper Flex Conductor Size (AWG) | 6 |
| Class K Copper Flex Conductor Size (AWG) | 6 |
| Class M Copper Flex Conductor Size (AWG) | 6 |
| Copper Code Conductor Size (AWG) | 6 |
| DLO Copper Flex Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel with Inspection Window |
Panduit LCCX6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342535 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX6-14A-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342535 Environmental Information
| Panduit's RoHS Statement | Download and View |
