Panduit LCCX6-38AC-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$8.10
Unit price
Brand: Panduit
|
SKU:
LCCX6-38AC-L
Regular price
$8.10
Unit price
Description
Description

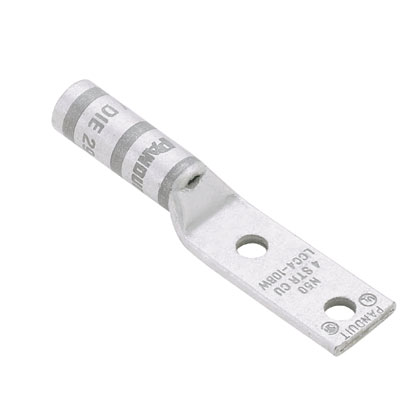

Panduit Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, Slotted/Standard/Straight Tongue, 0.62 in W x 0.06 in THK Tongue, 2.96 in Overall Length, Long/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 0.63 to 0.88 in Stud Hole Spacing, 1.13 in L Wire Strip, Tin Plated, 90 deg C, 1.13 in Mounting Hole, Copper, Blue
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCCX6-38AC-L | Compression Connectors - Lugs | UPC - 07498334503 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 0.88 |
| Stud Hole Spacing (mm) | 22.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Overall Length (In.) | 2.96 |
| Overall Length (mm) | 75.2 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 1.13 |
Panduit LCCX6-38AC-L | Compression Connectors - Lugs | UPC - 07498334503 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX6-38AC-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX6-38AC-L | Compression Connectors - Lugs | UPC - 07498334503 Environmental Information
| Panduit's RoHS Statement | Download and View |
