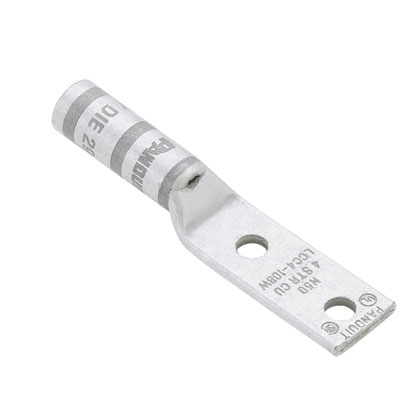

Panduit LCCX8-10B-L | Compression Connectors - Lugs | UPC - 0749834...
Regular price
$7.59
Unit price
Brand: Panduit
|
SKU:
LCCX8-10B-L
Regular price
$7.59
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCCX, Flexible/Extra-Flexible Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, #10 Stud, Straight Tongue, 0.41 in W x 0.08 in THK Tongue, 2.14 in Overall Length, Long With Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.7 in L Barrel, 3/4 in L Wire Strip, 3/4 in Hole Spacing, 90 deg C, 3/4 in Mounting Hole, Copper, Red
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- 8 AWG class B, C, G, H, I, K, M and DLO conductor
Panduit LCCX8-10B-L | Compression Connectors - Lugs | UPC - 07498342523 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.7 |
| Barrel Length (mm) | 17.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.41 |
| Tongue Width (mm) | 10.4 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 2.14 |
| Overall Length (mm) | 54.4 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Burndy Die Index Number | 49 |
| Wire Strip Length (In.) | 42,828 |
Panduit LCCX8-10B-L | Compression Connectors - Lugs | UPC - 07498342523 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX8-10B-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX8-10B-L | Compression Connectors - Lugs | UPC - 07498342523 Environmental Information
| Panduit's RoHS Statement | Download and View |
