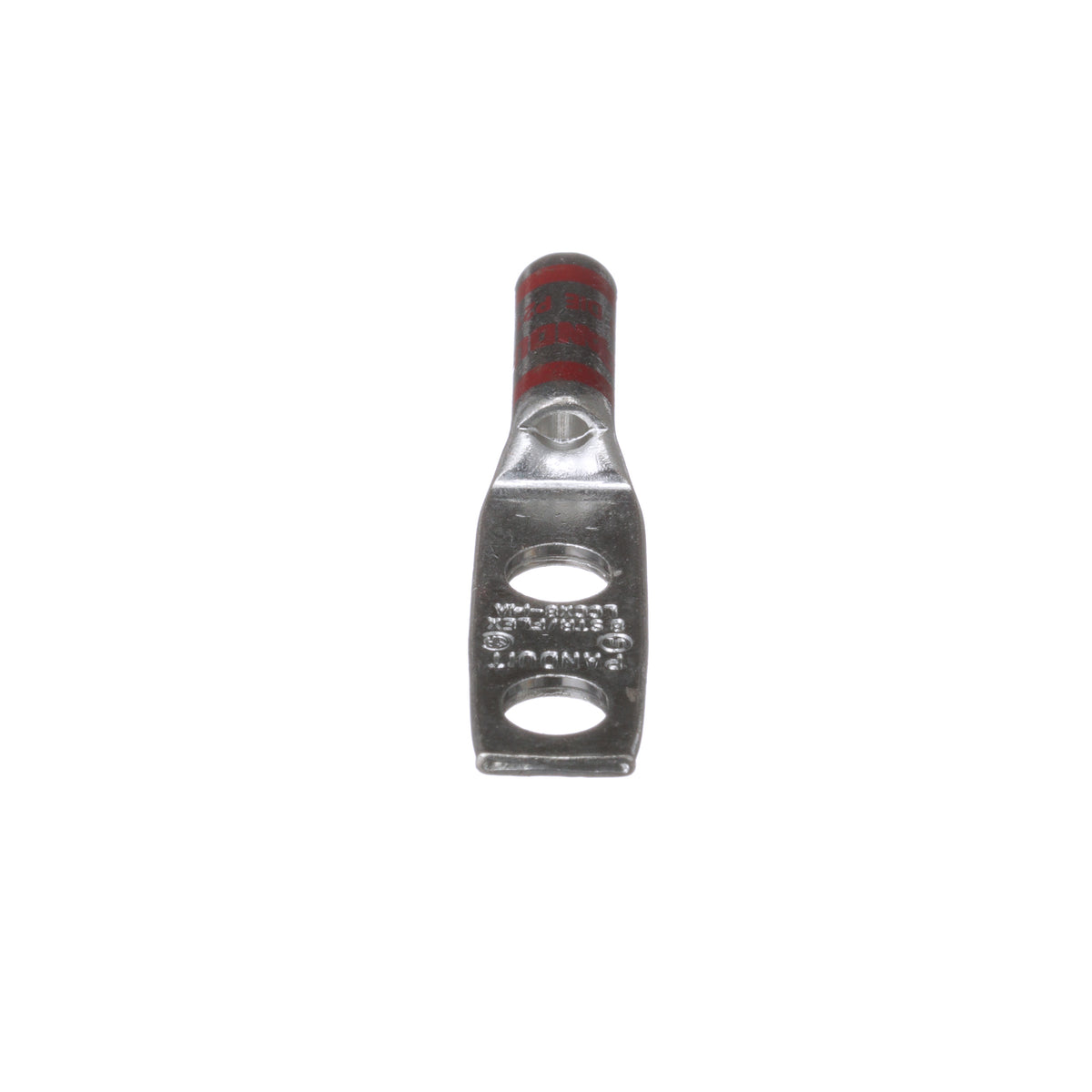

Panduit Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 2.1 in Overall Length, Long/Standard Barrel, 0.18 in ID x 0.27 in OD x 0.7 in L Barrel, Specifications: 0.63 in Stud Hole Spacing, 3/4 in L Wire Strip, Tin Plated, 90 deg C, 42.828 in Mounting Hole, Copper, Red
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCCX8-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342526 Key Specs
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.57 |
| Outer Diameter (In.) | 0.27 |
| Outer Diameter (mm) | 6.85 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 8 |
| DLO Copper Flex Conductor Size (AWG) | 8 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel with Inspection Window |
| Barrel Length (In.) | 0.7 |
| Barrel Length (mm) | 17.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
