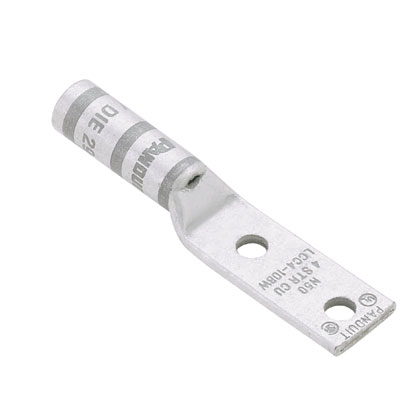

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCCX, Flexible Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 2.48 in Overall Length, Long Barrel, 0.7 in L Barrel, 90 deg C, 4.2828 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCCX8-14D-L | Compression Connectors - Lugs | UPC - 07498342530 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.7 |
| Barrel Length (mm) | 17.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 2.48 |
| Overall Length (mm) | 63 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Burndy Die Index Number | 49 |
| Wire Strip Length (In.) | 42,828 |
Panduit LCCX8-14D-L | Compression Connectors - Lugs | UPC - 07498342530 Data Sheets
| Catalog Cut Sheets | Flex Conductor, Two-Hole, Long Barrel with Window Lug | Download and View |
| Part Drawings | Part Drawing - PDF - LCCX8-14D-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCCX8-14D-L | Compression Connectors - Lugs | UPC - 07498342530 Environmental Information
| Panduit's RoHS Statement | Download and View |
