Panduit LCD1/0-38D-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, standard barrel lug with window, 1/0 AWG wire, 3/8 stud hole, 1 hole spacing.

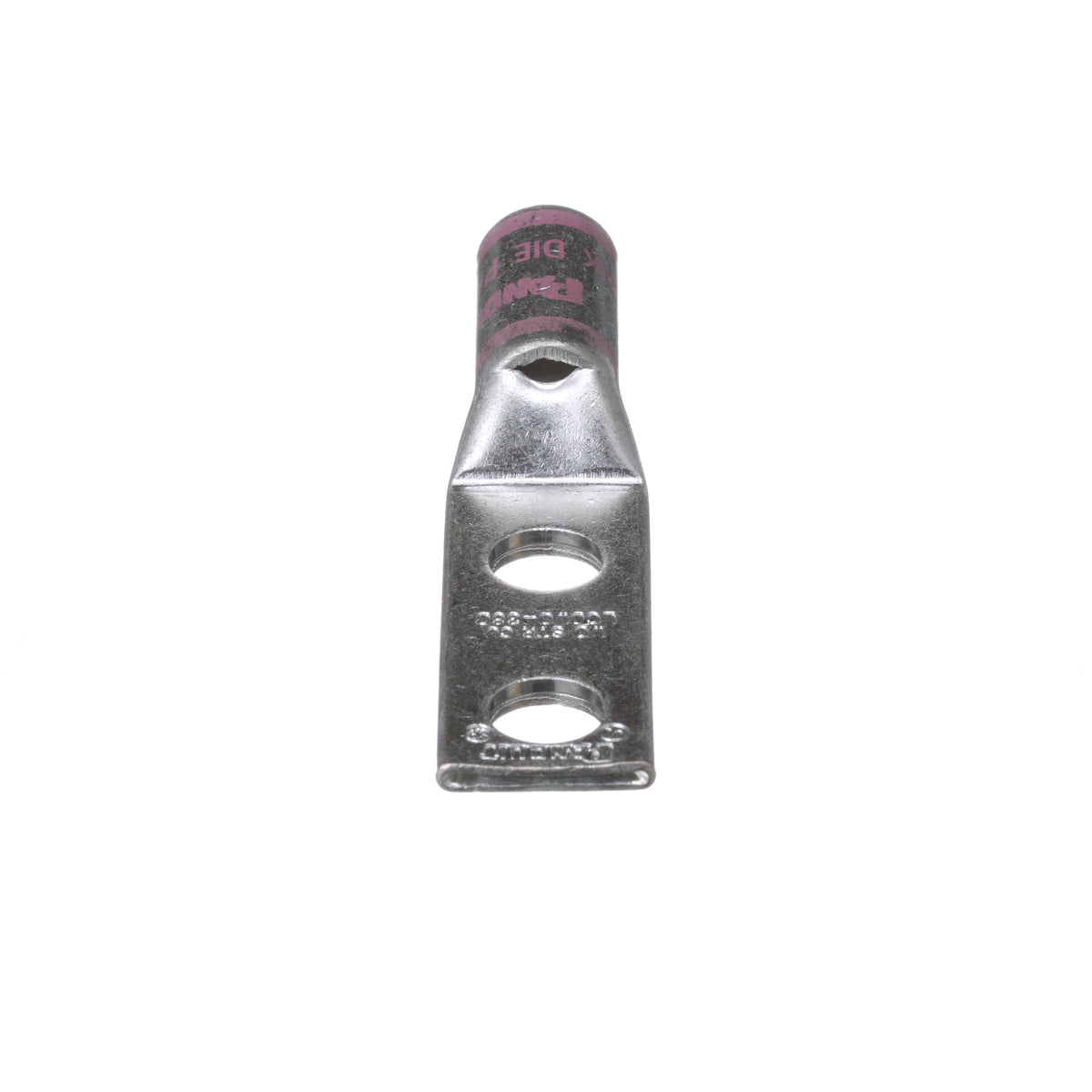

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 3/8 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 3.08 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 1 in Stud Hole Spacing, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Panduit - LCD1/0-38D-X - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and teperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCD1/0-38D-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD1/0-38D-X |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 1/0 Awg |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.4 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3.1 |
| Overall Length (In.) | 3.08 |
| UPC | 07498338322 |
