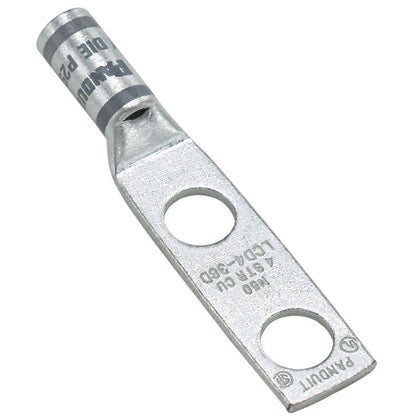

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 5/16 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.88 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 0.88 in Stud Hole Spacing, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Features + Benefits
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD1/0-56C-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338323 Key Specs
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 0.88 |
| Stud Hole Spacing (mm) | 22.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.88 |
| Overall Length (mm) | 73.2 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
Panduit LCD1/0-56C-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338323 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Part Drawings | Part Drawing - PDF - LCD1_0-56C-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD1/0-56C-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338323 Environmental Information
| Panduit's RoHS Statement | Download and View |
