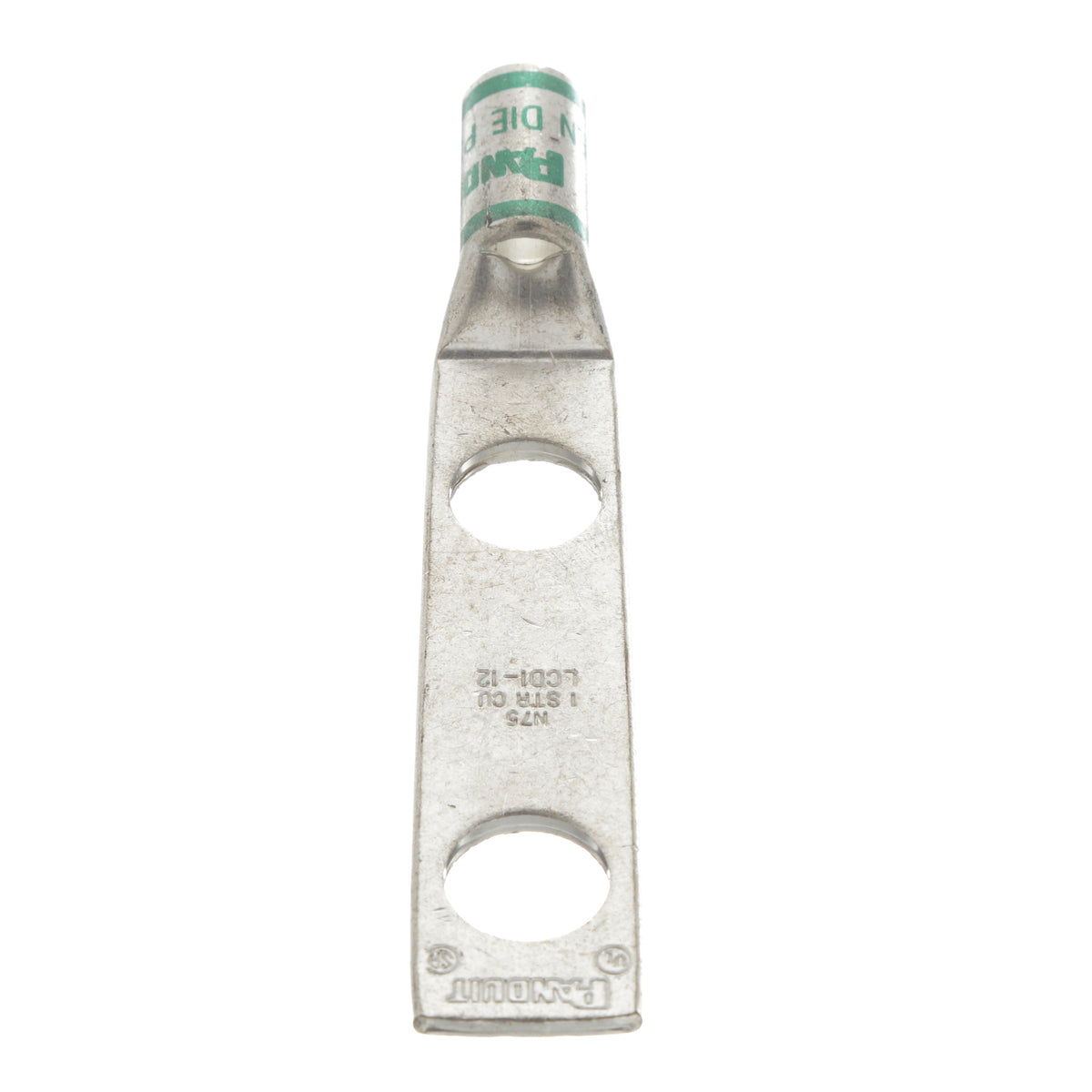

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/2 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 4.16 in Overall Length, Standard With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD1-12-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338292 Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 4.16 |
| Overall Length (mm) | 105.7 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
Panduit LCD1-12-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338292 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD1-12-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
