Brand: Panduit
|
SKU:
903184

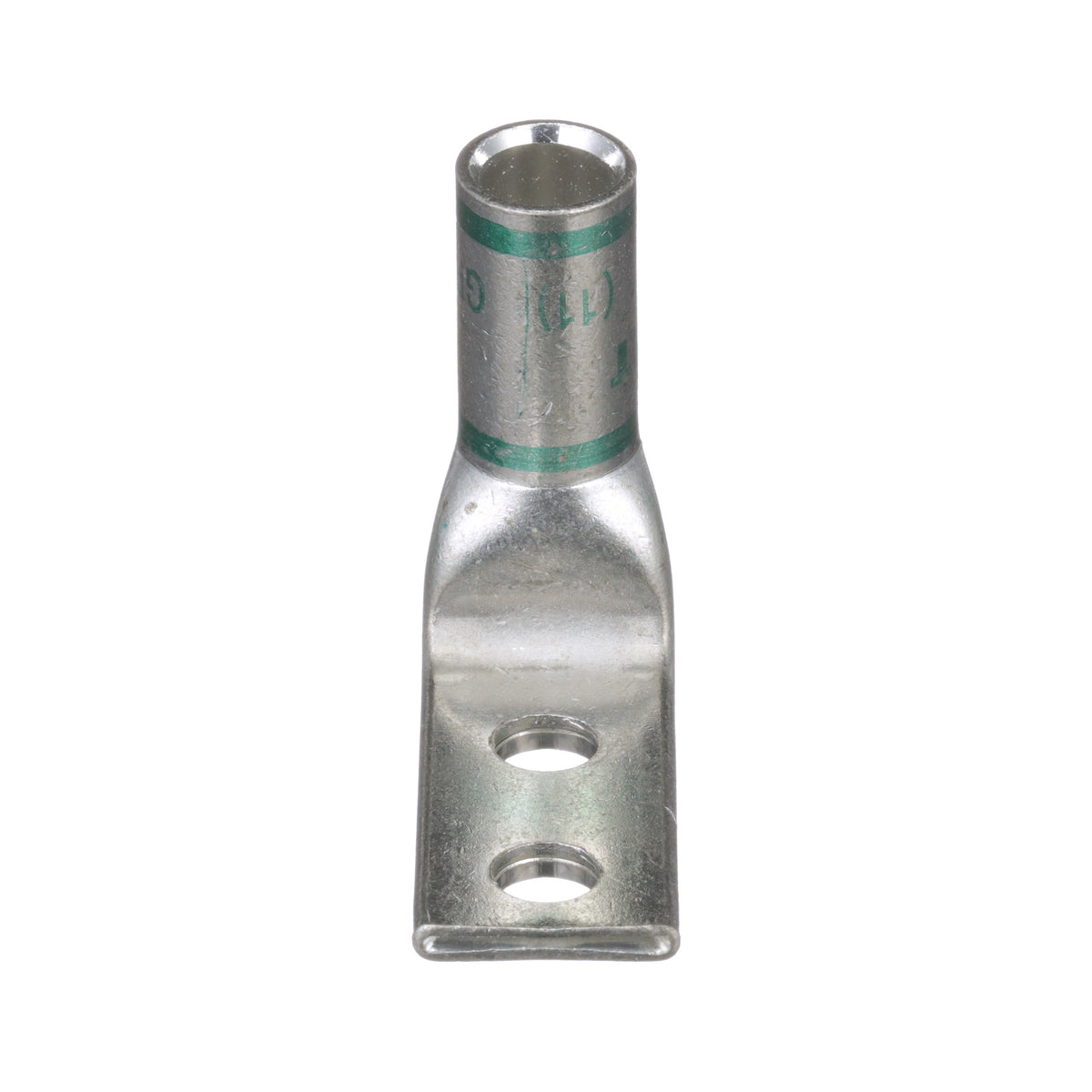

Panduit LCD1-14AF-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356813
Regular price
$13.19
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD1-14AF-E | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
903184
Regular price
$13.19
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD-F, Copper Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, 90 deg Long Tongue, 1.26 in L x 0.7 in W x 0.11 in THK Tongue, 1.94 in Overall Length, Standard With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
- For use with flexible copper conductors
Panduit LCD1-14AF-E Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 1.94 |
| Overall Length (mm) | 49.3 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
Panduit LCD1-14AF-E Data Sheets
| Installation Documents | Push-Pull LC Duplex Fiber Optic Patch Cords: FS053 | Download and View |
| Part Drawings | Jacketed Duplex Fiber Patch Cords | Download and View |
| Selection Guides | HD Flex Fiber Cabling System Ordering Guide: D-FBCB45--SA-ENG | Download and View |
