Brand: Panduit
|
SKU:
939046

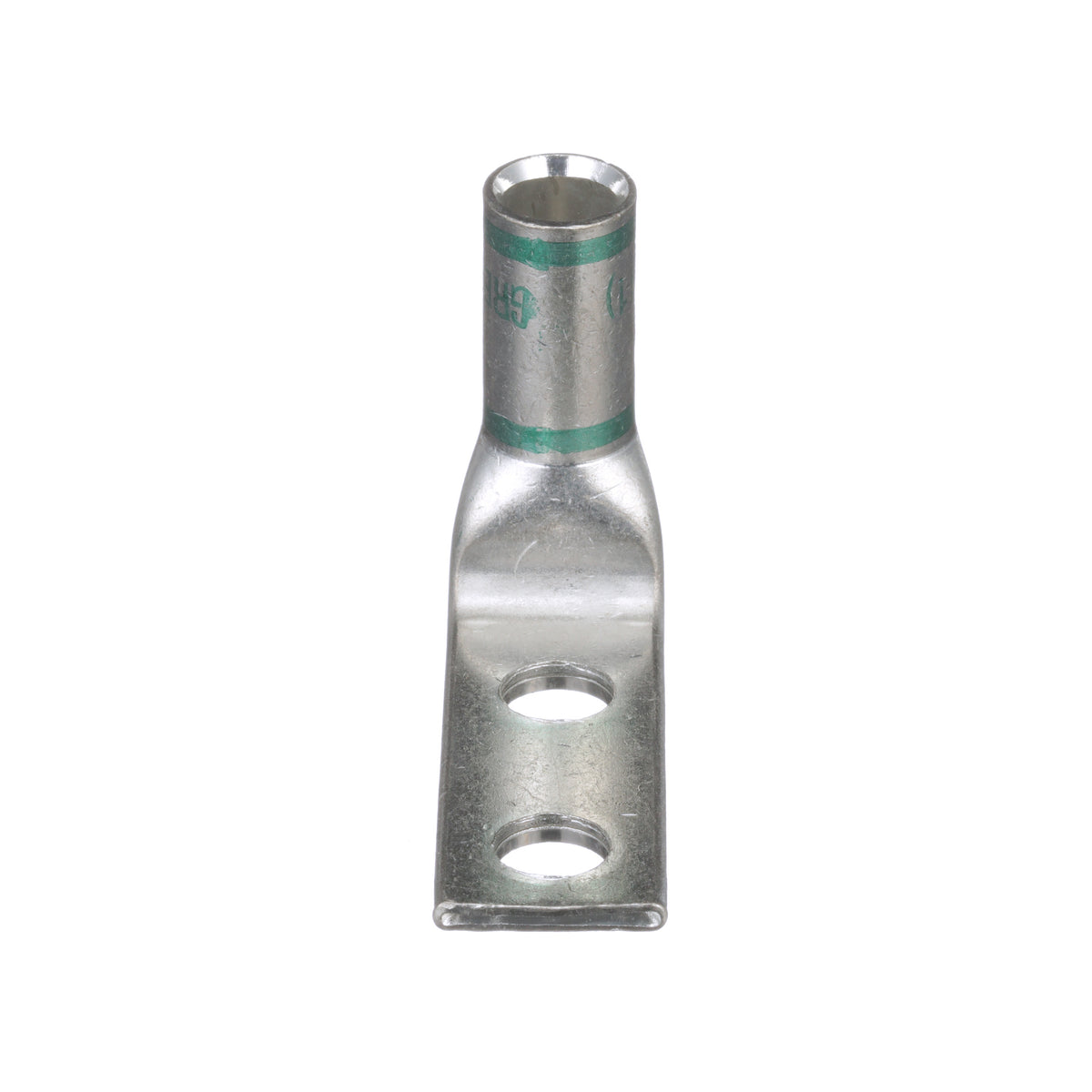

Panduit LCD1-56CF-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356847
Regular price
$13.19
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD1-56CF-E | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
939046
Regular price
$13.19
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCD, 1 AWG Conductor, Die Code: P37, 35 kV, 5/16 in Stud, 90 deg Tongue, 0.7 in W x 0.11 in THK Tongue, 2.31 in Overall Length, Standard Barrel, 0.88 in L Barrel, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCD1-56CF-E Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 0.88 |
| Stud Hole Spacing (mm) | 22.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 2.31 |
| Overall Length (mm) | 58.7 |
| Color Code | Green |
| Panduit Die Index Number | 37 |
Panduit LCD1-56CF-E Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HST0.4-3-Q2Y Product Page | Download and View |
| Specification Sheets | Thick Wall Polyolefin Heat Shrink Tubing: HSSP02-WW-ENG | Download and View |
| Part Drawings | Part Drawing - PDF - GB0239KM_03A | Download and View |
