Brand: Panduit
|
SKU:
10021200

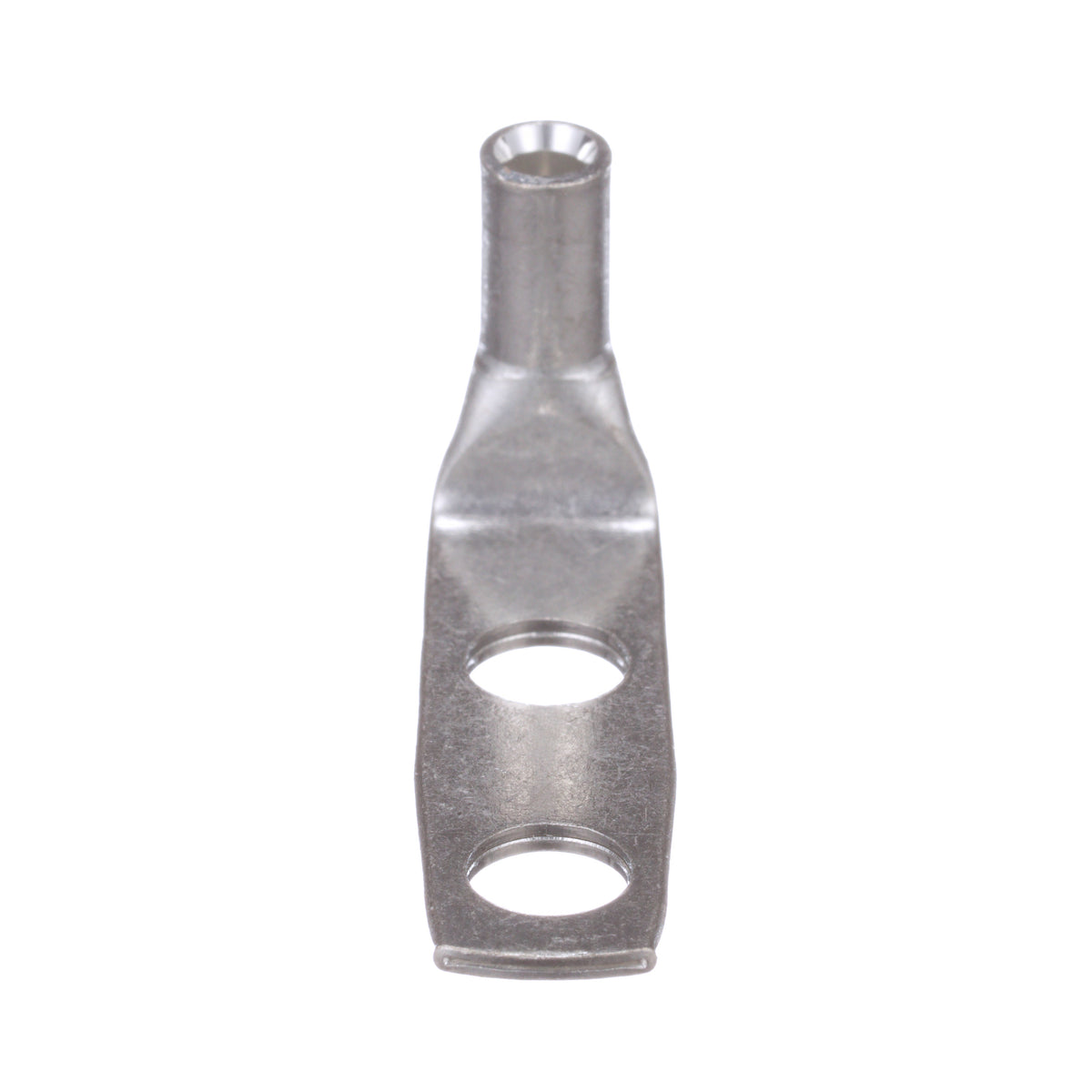

Panduit LCD10-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498397376
Regular price
$12.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD10-14AF-L | Tin-Plated Copper Compression Connectors - L...
Regular price
$12.16
Unit price
Description
Description
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCD, Solid/Stranded Copper Conductor, 12 to 10 AWG, 14 to 10 AWG Conductor, 35 kVAC, 42.826 in Stud, 90 deg Tongue, 1.25 in L x 0.42 in W x 0.05 in THK Tongue, 1.56 in Overall Length, Seamless/Standard with Inspection Window Barrel, 0.13 in ID x 0.22 in OD x 0.38 in L Barrel, 5/8 in Stud Hole Spacing, Tin Plated Finish, 90 deg C, 42552 in Mounting Hole, Copper
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- 14 to 10 AWG stranded, 12 to 10 AWG solid
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit Panduit LCD10-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498397376 Key Specs
| Copper Conductor Size (AWG) | #14 |
| Copper Conductor Size (kcmil) | 4.11 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.56 |
| Overall Length (mm) | 39.6 |
| Wire Strip Length (In.) | 42,552 |
| Wire Strip Length (mm) | 11.1 |
Panduit Panduit LCD10-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498397376 Environmental Information
| Panduit's RoHS Statement | Download and View |
